Specifications: BMW 1 Series Hatchback 5dr (E87 LCI, facelift 2007) 120i (170 Hp) 2007, 2008, 2009, 2010, 2011

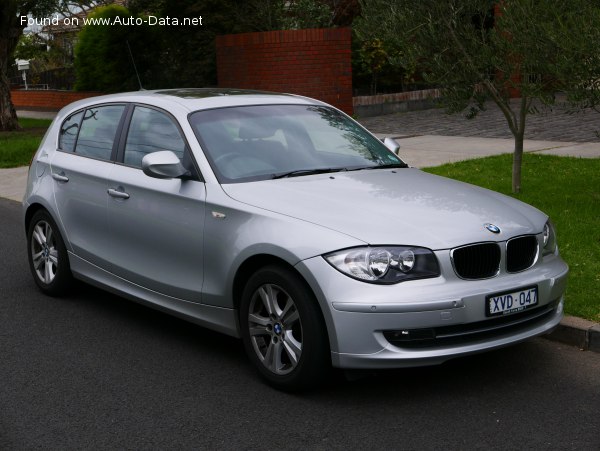

2007 BMW 1 Series Hatchback 5dr (E87 LCI, facelift 2007) - Photo 1

BMW 1 Series Hatchback 5dr (E87 LCI, facelift 2007) 120i (170 Hp) – Full specifications
General information
Brand BMW
Model 1 Series
Generation 1 Series Hatchback 5dr (E87 LCI, facelift 2007)
Modification (Engine) 120i (170 Hp)
Start of production 2007 year
End of production 2011 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 8.6 l/100 km
27.4 US mpg
32.8 UK mpg
11.6 km/l
Fuel consumption (economy) – extra urban 5.4 l/100 km
43.6 US mpg
52.3 UK mpg
18.5 km/l
Fuel consumption (economy) – combined 6.6 l/100 km
35.6 US mpg
42.8 UK mpg
15.2 km/l
CO2 emissions 153 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 7.8 sec
Acceleration 0 – 62 mph 7.8 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 7.4 sec
Maximum speed 224 km/h
139.19 mph
Emission standard Euro 5
Weight-to-power ratio 7.6 kg/Hp, 130.8 Hp/tonne
Weight-to-torque ratio 6.2 kg/Nm, 161.5 Nm/tonne
Engine specs
Power 170 Hp @ 6700 rpm.
Power per litre 85.2 Hp/l
Torque 210 Nm @ 4250 rpm.
154.89 lb.-ft. @ 4250 rpm.
Engine layout Front, Longitudinal
Engine Model/Code N43B20A
Engine displacement 1995 cm3
121.74 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 84 mm
3.31 in.
Piston Stroke 90 mm
3.54 in.
Compression ratio 12:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Naturally aspirated engine
Engine oil capacity 4.25 l
4.49 US qt | 3.74 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7.2 l
7.61 US qt | 6.34 UK qt

Space, Volume and weights
Kerb Weight 1300 kg
2866.01 lbs.
Max. weight 1800 kg
3968.32 lbs.
Max load 500 kg
1102.31 lbs.
Trunk (boot) space – minimum 330 l
11.65 cu. ft.
Trunk (boot) space – maximum 1150 l
40.61 cu. ft.
Fuel tank capacity 53 l
14 US gal | 11.66 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (8%) 1200 kg
2645.55 lbs.
Permitted trailer load with brakes (12%) 1200 kg
2645.55 lbs.
Permitted trailer load without brakes 680 kg
1499.14 lbs.
Permitted towbar download 75 kg
165.35 lbs.
Dimensions
Length 4239 mm
166.89 in.
Width 1748 mm
68.82 in.
Width including mirrors 1934 mm
76.14 in.
Height 1421 mm
55.94 in.
Wheelbase 2660 mm
104.72 in.
Front track 1484 mm
58.43 in.
Rear (Back) track 1497 mm
58.94 in.
Front overhang 751 mm
29.57 in.
Rear overhang 828 mm
32.6 in.
Drag coefficient (Cd) 0.30
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent type McPherson, Transverse stabilizer
Rear suspension Independent multi-link suspension, Transverse stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 205/55 R16 V
Wheel rims size 7J x 16
