Specifications: BMW 1 Series Hatchback 5dr (F20) 118d (143 Hp) 2011, 2012, 2013, 2014, 2015

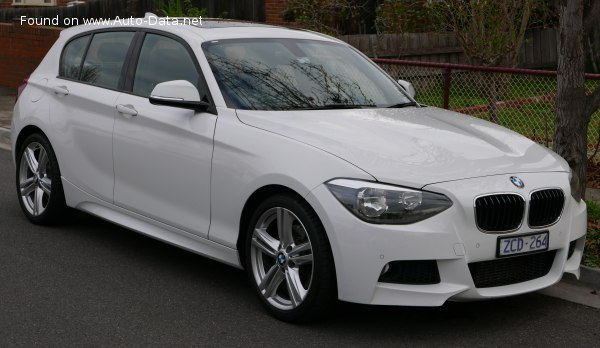

2011 BMW 1 Series Hatchback 5dr (F20) - Photo 1

BMW 1 Series Hatchback 5dr (F20) 118d (143 Hp) – Full specifications
General information
Brand BMW
Model 1 Series
Generation 1 Series Hatchback 5dr (F20)
Modification (Engine) 118d (143 Hp)
Start of production 2011 year
End of production 2015 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 5.4-5.5 l/100 km
43.6 – 42.8 US mpg
52.3 – 51.4 UK mpg
18.5 – 18.2 km/l
Fuel consumption (economy) – extra urban 3.8-3.9 l/100 km
61.9 – 60.3 US mpg
74.3 – 72.4 UK mpg
26.3 – 25.6 km/l
Fuel consumption (economy) – combined 4.4-4.5 l/100 km
53.5 – 52.3 US mpg
64.2 – 62.8 UK mpg
22.7 – 22.2 km/l
CO2 emissions 115-118 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 8.9 sec
Acceleration 0 – 62 mph 8.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 8.5 sec
Maximum speed 212 km/h
131.73 mph
Emission standard Euro 5
Weight-to-power ratio 9.2 kg/Hp, 108.3 Hp/tonne
Weight-to-torque ratio 4.1 kg/Nm, 242.4 Nm/tonne
Engine specs
Power 143 Hp @ 4000 rpm.
Power per litre 71.7 Hp/l
Torque 320 Nm @ 1750-2500 rpm.
236.02 lb.-ft. @ 1750-2500 rpm.
Engine layout Front, Longitudinal
Engine Model/Code N47D20C
Engine displacement 1995 cm3
121.74 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 84 mm
3.31 in.
Piston Stroke 90 mm
3.54 in.
Compression ratio 16.5:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Twin-power turbo, Intercooler
Engine oil capacity 5.2 l
5.49 US qt | 4.58 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7 l
7.4 US qt | 6.16 UK qt
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1320 kg
2910.1 lbs.
Max. weight 1850 kg
4078.55 lbs.
Max load 530 kg
1168.45 lbs.
Trunk (boot) space – minimum 360 l
12.71 cu. ft.
Trunk (boot) space – maximum 1200 l
42.38 cu. ft.
Fuel tank capacity 52 l
13.74 US gal | 11.44 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (12%) 1200 kg
2645.55 lbs.
Permitted trailer load without brakes 690 kg
1521.19 lbs.
Permitted towbar download 75 kg
165.35 lbs.
Dimensions
Length 4324 mm
170.24 in.
Width 1765 mm
69.49 in.
Height 1421 mm
55.94 in.
Wheelbase 2690 mm
105.91 in.
Front track 1535 mm
60.43 in.
Rear (Back) track 1569 mm
61.77 in.
Ride height (ground clearance) 140 mm
5.51 in.
Drag coefficient (Cd) 0.30
Minimum turning circle (turning diameter) 10.9 m
35.76 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Double wishbone
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 205/55 R16
Wheel rims size 7J x 16
