Specifications: BMW 1 Series Hatchback (E87) 120i (150 Hp) Steptronic 2004, 2005, 2006, 2007

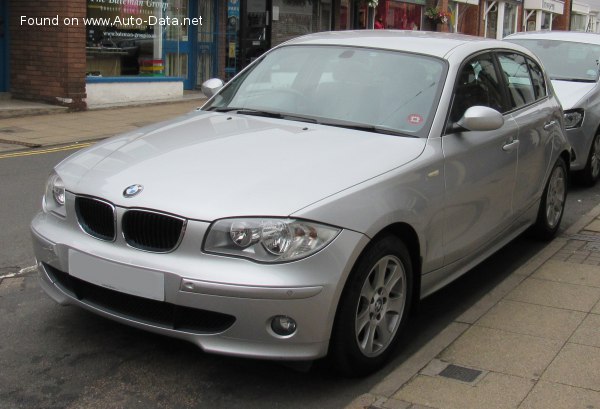

2004 BMW 1 Series Hatchback (E87) - Photo 1

BMW 1 Series Hatchback (E87) 120i (150 Hp) Steptronic – Full specifications
General information
Brand BMW
Model 1 Series
Generation 1 Series Hatchback (E87)
Modification (Engine) 120i (150 Hp) Steptronic
Start of production 2004 year
End of production 2007 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 11 l/100 km
21.4 US mpg
25.7 UK mpg
9.1 km/l
Fuel consumption (economy) – extra urban 6.2 l/100 km
37.9 US mpg
45.6 UK mpg
16.1 km/l
Fuel consumption (economy) – combined 7.9 l/100 km
29.8 US mpg
35.8 UK mpg
12.7 km/l
CO2 emissions 190 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 9.2 sec
Acceleration 0 – 62 mph 9.2 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 8.7 sec
Maximum speed 213 km/h
132.35 mph
Weight-to-power ratio 8.5 kg/Hp, 117.6 Hp/tonne
Weight-to-torque ratio 6.4 kg/Nm, 156.9 Nm/tonne
Engine specs
Power 150 Hp @ 6200 rpm.
Power per litre 75.2 Hp/l
Torque 200 Nm @ 3600 rpm.
147.51 lb.-ft. @ 3600 rpm.
Engine layout Front, Longitudinal
Engine Model/Code N46B20
Engine displacement 1995 cm3
121.74 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 84 mm
3.31 in.
Piston Stroke 90 mm
3.54 in.
Compression ratio 10.5:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Engine oil capacity 4.25 l
4.49 US qt | 3.74 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7.8 l
8.24 US qt | 6.86 UK qt

Space, Volume and weights
Kerb Weight 1275 kg
2810.89 lbs.
Max. weight 1775 kg
3913.21 lbs.
Max load 500 kg
1102.31 lbs.
Trunk (boot) space – minimum 330 l
11.65 cu. ft.
Trunk (boot) space – maximum 1150 l
40.61 cu. ft.
Fuel tank capacity 50 l
13.21 US gal | 11 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (8%) 1200 kg
2645.55 lbs.
Permitted trailer load with brakes (12%) 1200 kg
2645.55 lbs.
Permitted trailer load without brakes 665 kg
1466.07 lbs.
Permitted towbar download 75 kg
165.35 lbs.
Dimensions
Length 4227 mm
166.42 in.
Width 1751 mm
68.94 in.
Width including mirrors 1933 mm
76.1 in.
Height 1430 mm
56.3 in.
Wheelbase 2660 mm
104.72 in.
Front track 1484 mm
58.43 in.
Rear (Back) track 1497 mm
58.94 in.
Front overhang 737 mm
29.02 in.
Rear overhang 830 mm
32.68 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission
Front suspension Spring Strut
Rear suspension Spring Strut
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Tires size 195/55 R16
Wheel rims size 6.5J X 16
