Specifications: BMW 3 Series Convertible (E93 LCI, facelift 2010) 335i (306 Hp) 2010, 2011, 2012, 2013

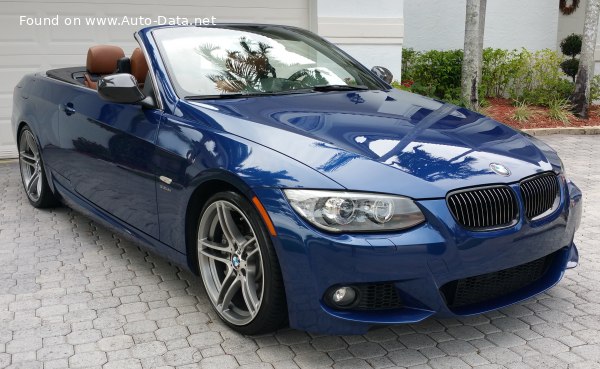

2010 BMW 3 Series Convertible (E93 LCI, facelift 2010) - Photo 1

BMW 3 Series Convertible (E93 LCI, facelift 2010) 335i (306 Hp) – Full specifications
General information
Brand BMW
Model 3 Series
Generation 3 Series Convertible (E93 LCI, facelift 2010)
Modification (Engine) 335i (306 Hp)
Start of production 2010 year
End of production 2013 year
Powertrain Architecture Internal Combustion engine
Body type Cabriolet
Seats 4
Doors 2
Performance specs
Fuel consumption (economy) – urban 12.4 l/100 km
19 US mpg
22.8 UK mpg
8.1 km/l
Fuel consumption (economy) – extra urban 6.7 l/100 km
35.1 US mpg
42.2 UK mpg
14.9 km/l
Fuel consumption (economy) – combined 8.8 l/100 km
26.7 US mpg
32.1 UK mpg
11.4 km/l
CO2 emissions 205 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 5.8 sec
Acceleration 0 – 62 mph 5.8 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 5.5 sec
Maximum speed 250 km/h
155.34 mph
Emission standard Euro 5
Weight-to-power ratio 5.7 kg/Hp, 176.4 Hp/tonne
Weight-to-torque ratio 4.3 kg/Nm, 230.5 Nm/tonne
Engine specs
Power 306 Hp @ 5800 rpm.
Power per litre 102.7 Hp/l
Torque 400 Nm @ 1200-5000 rpm.
295.02 lb.-ft. @ 1200-5000 rpm.
Engine layout Front, Longitudinal
Engine Model/Code N55B30A
Engine displacement 2979 cm3
181.79 cu. in.
Number of cylinders 6
Engine configuration Inline
Cylinder Bore 84 mm
3.31 in.
Piston Stroke 89.6 mm
3.53 in.
Compression ratio 10.2:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Twin-power turbo, Intercooler
Engine oil capacity 6.5 l
6.87 US qt | 5.72 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8.2 l
8.66 US qt | 7.21 UK qt

Space, Volume and weights
Kerb Weight 1735 kg
3825.02 lbs.
Max. weight 2165 kg
4773.01 lbs.
Max load 430 kg
947.99 lbs.
Trunk (boot) space – minimum 210 l
7.42 cu. ft.
Trunk (boot) space – maximum 350 l
12.36 cu. ft.
Fuel tank capacity 63 l
16.64 US gal | 13.86 UK gal
Permitted trailer load with brakes (12%) 1700 kg
3747.86 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 75 kg
165.35 lbs.
Dimensions
Length 4612 mm
181.57 in.
Width 1782 mm
70.16 in.
Width including mirrors 1961 mm
77.2 in.
Height 1384 mm
54.49 in.
Wheelbase 2760 mm
108.66 in.
Front track 1500 mm
59.06 in.
Rear (Back) track 1507 mm
59.33 in.
Ride height (ground clearance) 138 mm
5.43 in.
Drag coefficient (Cd) 0.31
Minimum turning circle (turning diameter) 11.0 m
36.09 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent coil spring
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 225/45 R17 91W; 255/40 R17 94W
Wheel rims size 8J x 17; 8.5J x 17
