Specifications: BMW 3 Series Coupe (E46, facelift 2003) 330Cd (204 Hp) 2003, 2004, 2005, 2006

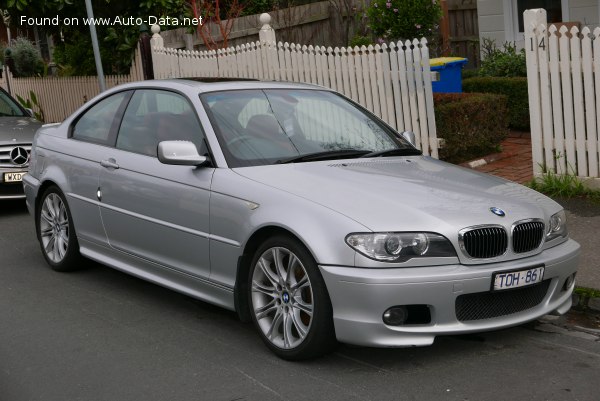

2004 BMW 3 Series Coupe (E46, facelift 2003) - Photo 1

BMW 3 Series Coupe (E46, facelift 2003) 330Cd (204 Hp) – Full specifications
General information
Brand BMW
Model 3 Series
Generation 3 Series Coupe (E46, facelift 2003)
Modification (Engine) 330Cd (204 Hp)
Start of production 2003 year
End of production 2006 year
Powertrain Architecture Internal Combustion engine
Body type Coupe
Seats 5
Doors 2
Performance specs
Fuel consumption (economy) – urban (NEDC) 9.1 l/100 km
25.8 US mpg
31 UK mpg
11 km/l
Fuel consumption (economy) – extra urban (NEDC) 5.2 l/100 km
45.2 US mpg
54.3 UK mpg
19.2 km/l
Fuel consumption (economy) – combined (NEDC) 6.6 l/100 km
35.6 US mpg
42.8 UK mpg
15.2 km/l
CO2 emissions (NEDC) 177 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 7.2 sec
Acceleration 0 – 62 mph 7.2 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 6.8 sec
Maximum speed 242 km/h
150.37 mph
Emission standard Euro 4
Weight-to-power ratio 7.5 kg/Hp, 132.5 Hp/tonne
Weight-to-torque ratio 3.8 kg/Nm, 266.2 Nm/tonne
Engine specs
Power 204 Hp @ 4000 rpm.
Power per litre 68.2 Hp/l
Torque 410 Nm @ 1500 rpm.
302.4 lb.-ft. @ 1500 rpm.
Engine layout Front, Longitudinal
Engine Model/Code M57D30TU
Engine displacement 2993 cm3
182.64 cu. in.
Number of cylinders 6
Engine configuration Inline
Cylinder Bore 84 mm
3.31 in.
Piston Stroke 90 mm
3.54 in.
Compression ratio 17:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 7 l
7.4 US qt | 6.16 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 10.2 l
10.78 US qt | 8.97 UK qt

Space, Volume and weights
Kerb Weight 1540 kg
3395.12 lbs.
Max. weight 2040 kg
4497.43 lbs.
Max load 500 kg
1102.31 lbs.
Trunk (boot) space – minimum 410 l
14.48 cu. ft.
Fuel tank capacity 63 l
16.64 US gal | 13.86 UK gal
Max. roof load 75 kg
165.35 lbs.
Dimensions
Length 4488 mm
176.69 in.
Width 1757 mm
69.17 in.
Width including mirrors 1947 mm
76.65 in.
Height 1369 mm
53.9 in.
Wheelbase 2725 mm
107.28 in.
Front track 1471 mm
57.91 in.
Rear (Back) track 1483 mm
58.39 in.
Drag coefficient (Cd) 0.32
Minimum turning circle (turning diameter) 10.5 m
34.45 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Wishbone, Transverse stabilizer, Trailing arm, Coil spring
Front brakes Ventilated discs, 325 mm
Rear brakes Ventilated discs, 320 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 225/45 R17
Wheel rims size 8J x 17
