Specifications: BMW 3 Series Touring (E46, facelift 2001) 330xd (204 Hp) 2003, 2004, 2005

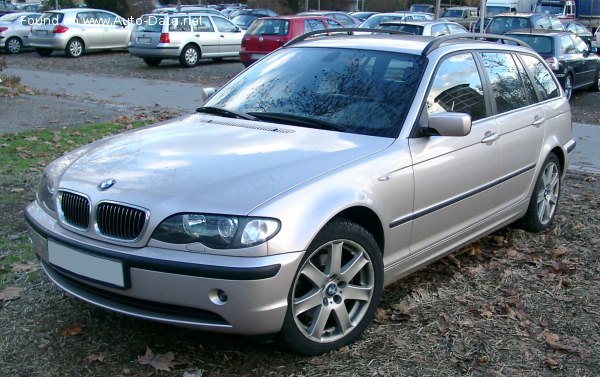

2001 BMW 3 Series Touring (E46, facelift 2001) - Photo 1

BMW 3 Series Touring (E46, facelift 2001) 330xd (204 Hp) – Full specifications
General information
Brand BMW
Model 3 Series
Generation 3 Series Touring (E46, facelift 2001)
Modification (Engine) 330xd (204 Hp)
Start of production 2003 year
End of production 2005 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 10.3 l/100 km
22.8 US mpg
27.4 UK mpg
9.7 km/l
Fuel consumption (economy) – extra urban 6.4 l/100 km
36.8 US mpg
44.1 UK mpg
15.6 km/l
Fuel consumption (economy) – combined 7.8 l/100 km
30.2 US mpg
36.2 UK mpg
12.8 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 7.9 sec
Acceleration 0 – 62 mph 7.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 7.5 sec
Maximum speed 230 km/h
142.92 mph
Weight-to-power ratio 8.5 kg/Hp, 118.3 Hp/tonne
Weight-to-torque ratio 4.2 kg/Nm, 237.7 Nm/tonne
Engine specs
Power 204 Hp @ 4000 rpm.
Power per litre 68 Hp/l
Torque 410 Nm @ 1500 rpm.
302.4 lb.-ft. @ 1500 rpm.
Engine layout Front, Longitudinal
Engine Model/Code M57D30
Engine displacement 3000 cm3
183.07 cu. in.
Number of cylinders 6
Engine configuration Inline
Cylinder Bore 84 mm
3.31 in.
Piston Stroke 90 mm
3.54 in.
Compression ratio 17:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 7 l
7.4 US qt | 6.16 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 10.2 l
10.78 US qt | 8.97 UK qt

Space, Volume and weights
Kerb Weight 1725 kg
3802.97 lbs.
Max. weight 2220 kg
4894.26 lbs.
Max load 495 kg
1091.29 lbs.
Trunk (boot) space – minimum 435 l
15.36 cu. ft.
Trunk (boot) space – maximum 1345 l
47.5 cu. ft.
Fuel tank capacity 63 l
16.64 US gal | 13.86 UK gal
Dimensions
Length 4480 mm
176.38 in.
Width 1740 mm
68.5 in.
Height 1410 mm
55.51 in.
Wheelbase 2725 mm
107.28 in.
Front track 1470 mm
57.87 in.
Rear (Back) track 1485 mm
58.46 in.
Drivetrain, brakes and suspension specs
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Wishbone
Rear suspension Coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 225/45 R17
Wheel rims size 17
