Specifications: BMW 3 Series Touring (F31) 316d (116 Hp) Steptronic 2015

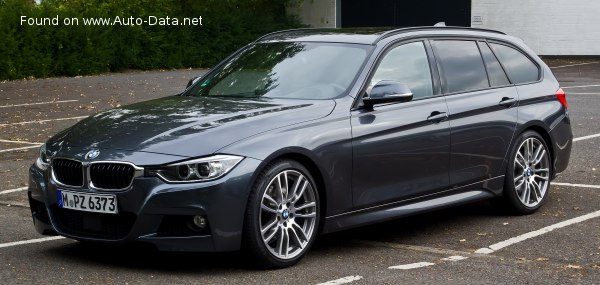

2012 BMW 3 Series Touring (F31) - Photo 1

BMW 3 Series Touring (F31) 316d (116 Hp) Steptronic – Full specifications
General information
Brand BMW
Model 3 Series
Generation 3 Series Touring (F31)
Modification (Engine) 316d (116 Hp) Steptronic
Start of production 2015 year
End of production 2015 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 5.0-5.5 l/100 km
47 – 42.8 US mpg
56.5 – 51.4 UK mpg
20 – 18.2 km/l
Fuel consumption (economy) – extra urban 3.6-4.0 l/100 km
65.3 – 58.8 US mpg
78.5 – 70.6 UK mpg
27.8 – 25 km/l
Fuel consumption (economy) – combined 4.1-4.6 l/100 km
57.4 – 51.1 US mpg
68.9 – 61.4 UK mpg
24.4 – 21.7 km/l
CO2 emissions 109-120 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 11.1 sec
Acceleration 0 – 62 mph 11.1 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 10.5 sec
Maximum speed 198 km/h
123.03 mph
Emission standard Euro 6
Weight-to-power ratio 13 kg/Hp, 76.8 Hp/tonne
Weight-to-torque ratio 5.6 kg/Nm, 178.8 Nm/tonne
Engine specs
Power 116 Hp @ 4000 rpm.
Power per litre 58.1 Hp/l
Torque 270 Nm @ 1250-2750 rpm.
199.14 lb.-ft. @ 1250-2750 rpm.
Engine layout Front, Longitudinal
Engine Model/Code N47D20C
Engine displacement 1995 cm3
121.74 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 84 mm
3.31 in.
Piston Stroke 90 mm
3.54 in.
Compression ratio 16.5:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Twin-power turbo, Intercooler
Engine oil capacity 5 l
5.28 US qt | 4.4 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7 l
7.4 US qt | 6.16 UK qt
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1510 kg
3328.98 lbs.
Max. weight 2105 kg
4640.73 lbs.
Max load 595 kg
1311.75 lbs.
Trunk (boot) space – minimum 495 l
17.48 cu. ft.
Trunk (boot) space – maximum 1500 l
52.97 cu. ft.
Fuel tank capacity 57 l
15.06 US gal | 12.54 UK gal
Dimensions
Length 4624 mm
182.05 in.
Width 1811 mm
71.3 in.
Height 1429 mm
56.26 in.
Wheelbase 2810 mm
110.63 in.
Front track 1543 mm
60.75 in.
Rear (Back) track 1583 mm
62.32 in.
Ride height (ground clearance) 140 mm
5.51 in.
Drag coefficient (Cd) 0.30
Minimum turning circle (turning diameter) 11.3 m
37.07 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 8 gears, automatic transmission Steptronic
Front suspension Independent coil spring
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 205/60 R16; 225/55 R16; 225/50 R17; 255/45 R17; 225/45 R18; 255/40 R18; 225/40 R19; 255/35 R19
Wheel rims size 7J x 16; 7.5J x 16; 7.5J x 17; 8.5J x 17; 8J x 18; 8.5J x 18; 8J x 19; 8.5J x 19
