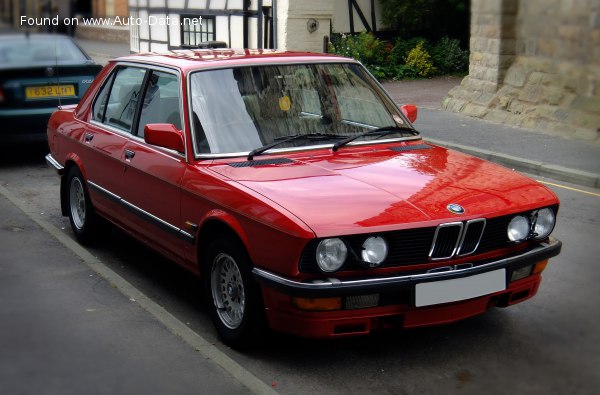

| General information | |
|---|---|
| Brand | BMW |
| Model | 5 Series |
| Generation | 5 Series (E28) |
| Modification (Engine) | 518i (105 Hp) |
| Start of production | 1983 year |
| End of production | 1987 year |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Sedan |
| Seats | 5 |
| Doors | 4 |
| Performance specs | |
| Fuel consumption (economy) – urban | 11 l/100 km 21.4 US mpg 25.7 UK mpg 9.1 km/l |
| Fuel consumption (economy) – extra urban | 6.1 l/100 km 38.6 US mpg 46.3 UK mpg 16.4 km/l |
| Fuel consumption (economy) – combined | 8.7 l/100 km 27 US mpg 32.5 UK mpg 11.5 km/l |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 12.6 sec |
| Acceleration 0 – 62 mph | 12.6 sec |
| Acceleration 0 – 60 mph (Calculated by Auto-Data.net) | 12 sec |
| Maximum speed | 175 km/h 108.74 mph |
| Weight-to-power ratio | 11 kg/Hp, 90.5 Hp/tonne |
| Weight-to-torque ratio | 8.6 kg/Nm, 116.4 Nm/tonne |
| Engine specs | |
| Power | 105 Hp @ 5800 rpm. |
| Power per litre | 59.5 Hp/l |
| Torque | 135 Nm @ 4500 rpm. 99.57 lb.-ft. @ 4500 rpm. |
| Engine layout | Front, Longitudinal |
| Engine Model/Code | M10B18 |
| Engine displacement | 1766 cm3 107.77 cu. in. |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 89 mm 3.5 in. |
| Piston Stroke | 71 mm 2.8 in. |
| Compression ratio | 9.7:1 |
| Number of valves per cylinder | 2 |
| Fuel injection system | Carburettor |
| Engine aspiration | Naturally aspirated engine |
| Engine oil capacity | 4 l 4.23 US qt | 3.52 UK qt |
| Engine oil specification |  Log in to see. |
| Coolant | 7 l 7.4 US qt | 6.16 UK qt |
|
|
|
| Space, Volume and weights | |
| Kerb Weight | 1160 kg 2557.36 lbs. |
| Trunk (boot) space – minimum | 460 l 16.24 cu. ft. |
| Fuel tank capacity | 70 l 18.49 US gal | 15.4 UK gal |
| Dimensions | |
| Length | 4620 mm 181.89 in. |
| Width | 1700 mm 66.93 in. |
| Height | 1415 mm 55.71 in. |
| Wheelbase | 2625 mm 103.35 in. |
| Front track | 1430 mm 56.3 in. |
| Rear (Back) track | 1470 mm 57.87 in. |
| Ride height (ground clearance) | 140 mm 5.51 in. |
| Drivetrain, brakes and suspension specs | |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the rear wheels of the vehicle. |
| Drive wheel | Rear wheel drive |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front brakes | Disc |
| Rear brakes | Disc |
Related articles

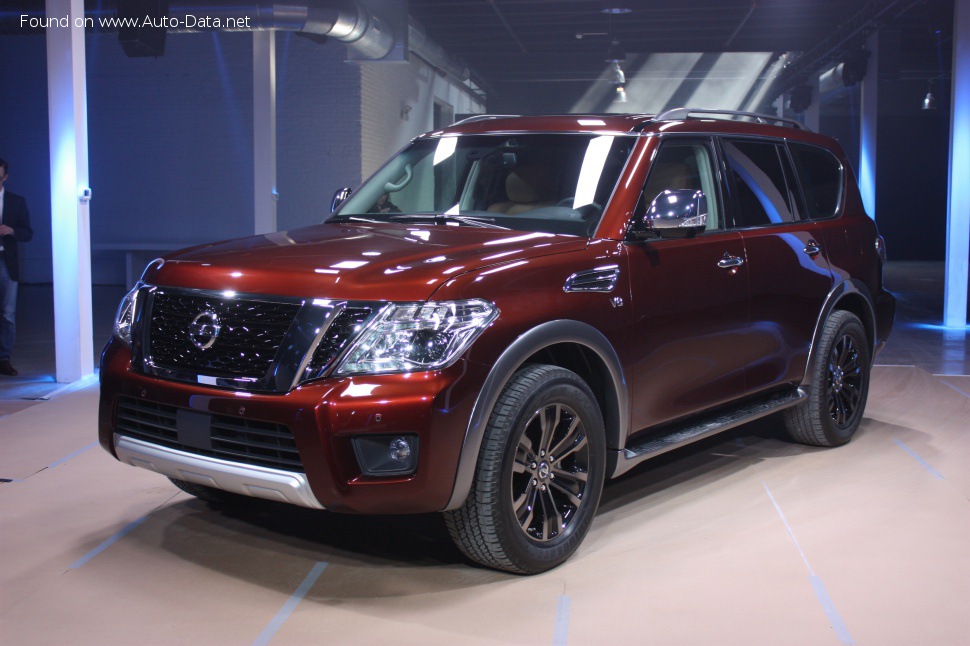

Specifications: Nissan Armada II (Y62) 5.6 V8 (390 Hp) 4×4 Automatic 2016, 2017, 2018, 2019, 2020

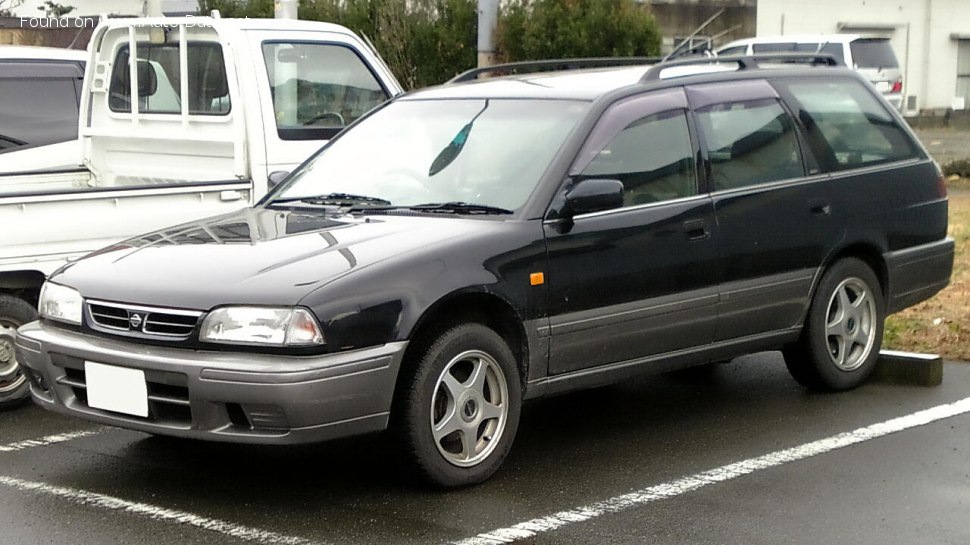

Specifications: Nissan Avenir (W10) Type B 1.8i 16V (125 Hp) Automatic 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998

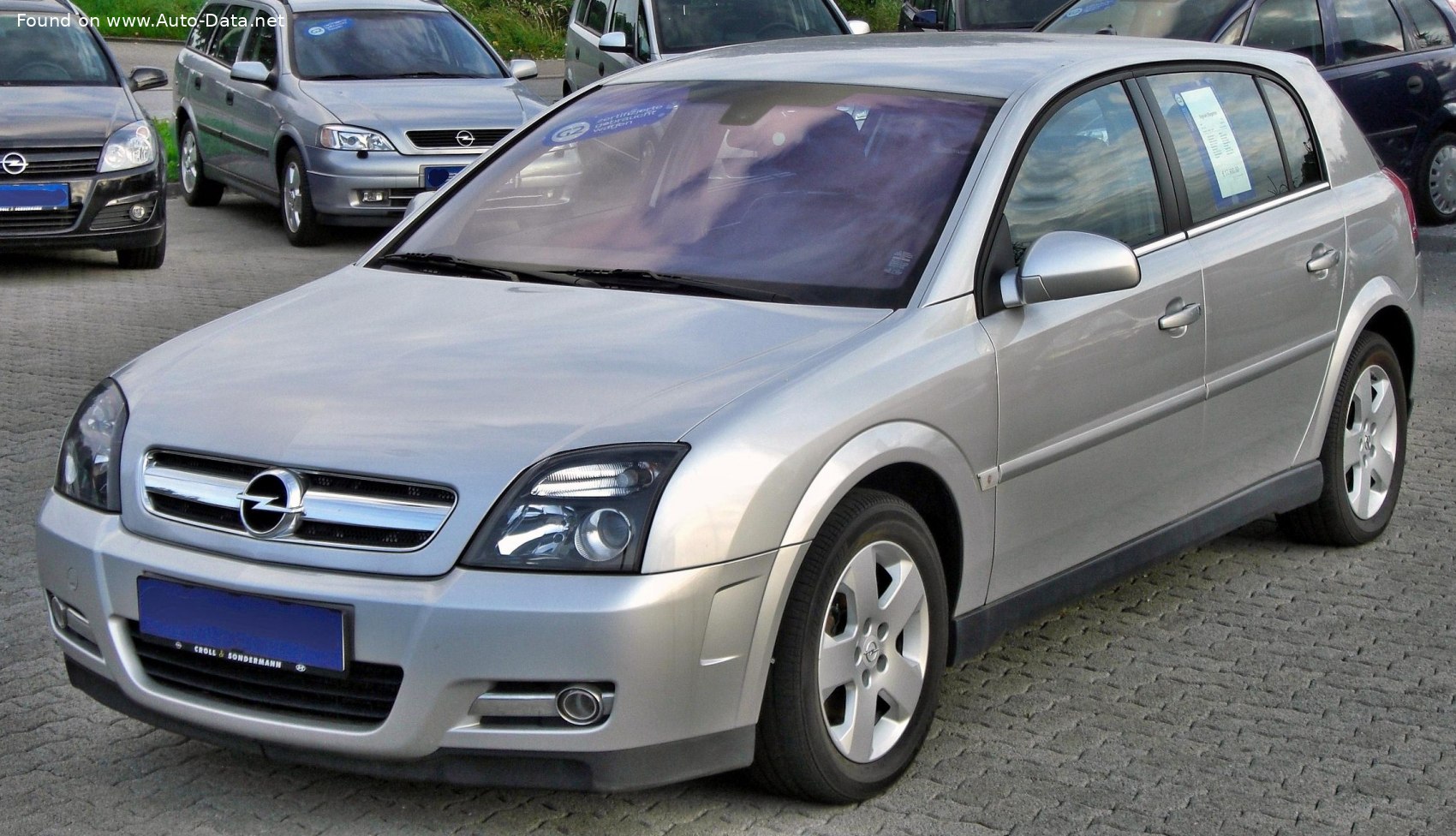

Specifications: Opel Signum 2.2 DTI ECOTEC (125 Hp) Automatic 2003, 2004

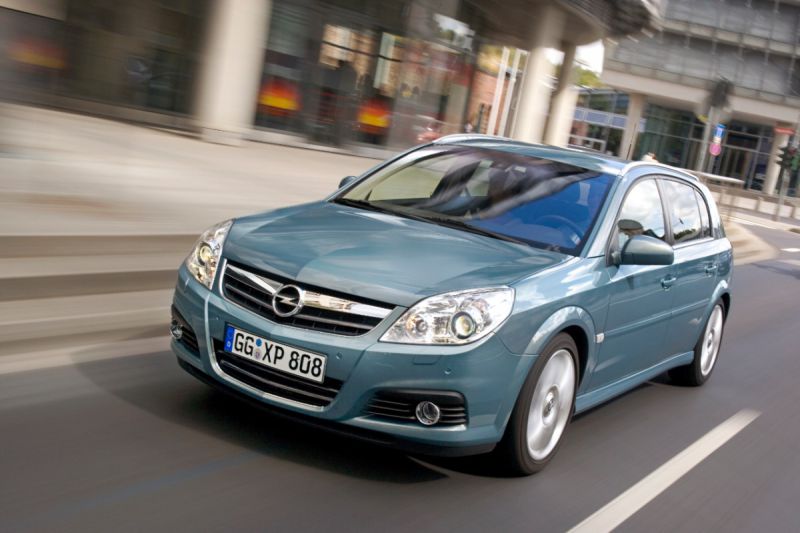

Specifications: Opel Signum (facelift 2005) 2.8i V6 24V Turbo (250 Hp) 2006, 2007, 2008
Specifications: Kia Niro II 1.6 GDI (129 Hp) Full Hybrid DCT 2024, 2025
Specifications: Kia Optima I 2.5 V6 (169 Hp) 2000, 2001, 2002
Specifications: Toyota Corona (T19) 2.0 i 16V TR-G (180 Hp) 1994, 1995, 1996

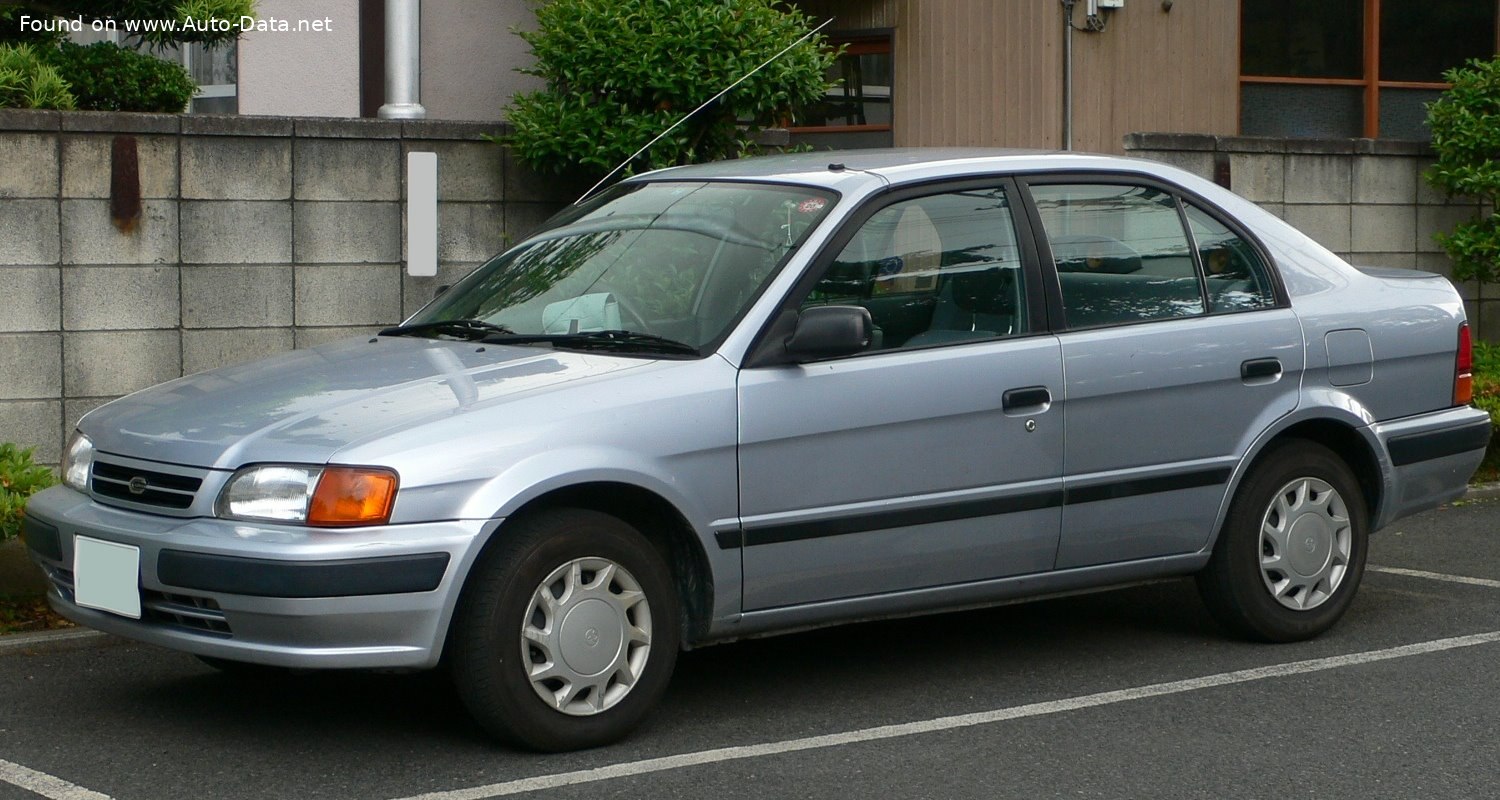

Specifications: Toyota Corsa (L50) 1.5 i (94 Hp) 1994, 1995, 1996, 1997, 1998, 1999
Specifications: Fiat 500X 1.3 MultiJetII (95 Hp) 2017, 2018

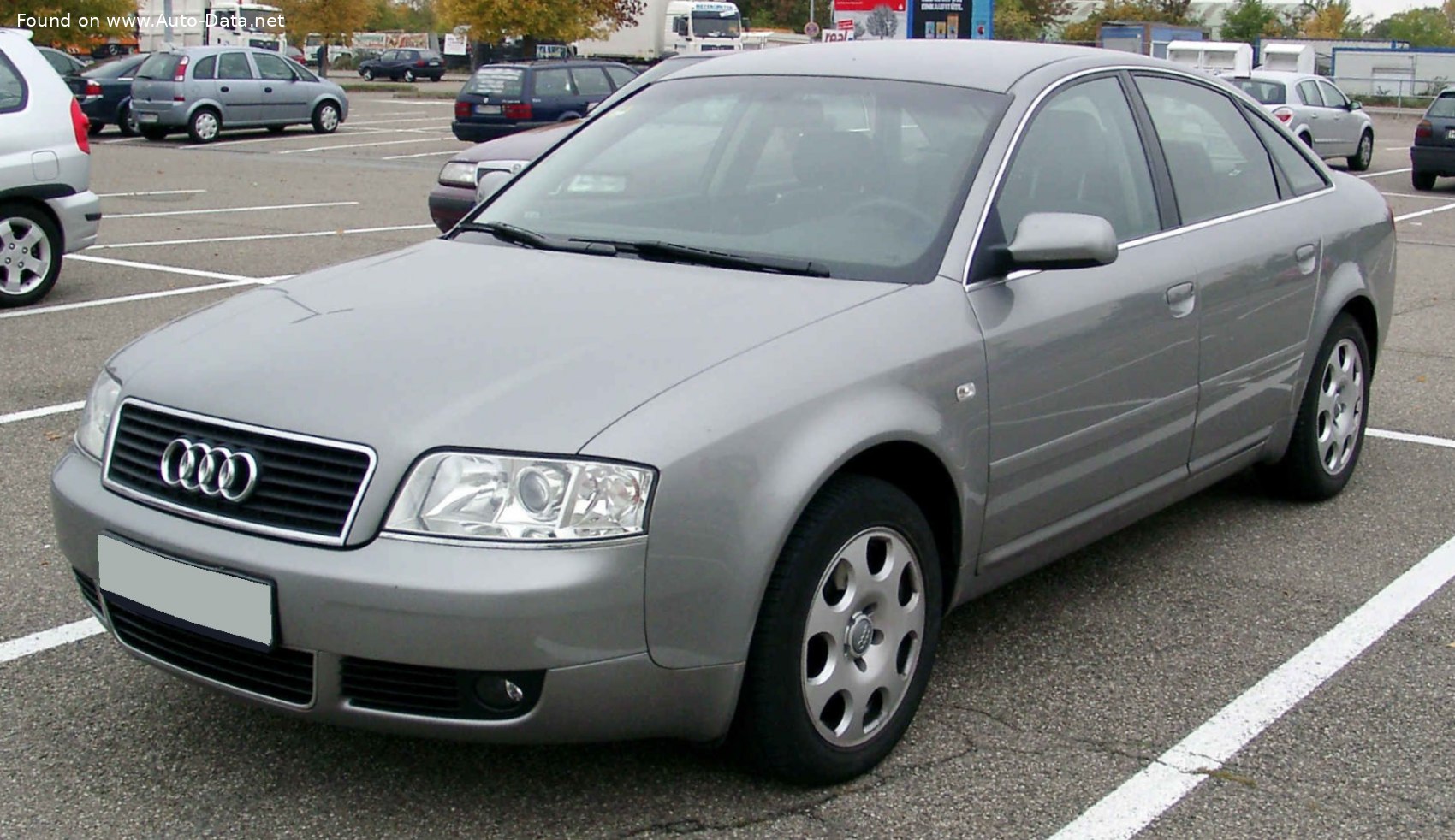

Specifications: Audi A6 (4B,C5, facelift 2001) 3.0 V6 (220 Hp) quattro 2001, 2002, 2003, 2004
Specifications: Peugeot 306 Break (7E) 1.9d (69 Hp) 1998, 1999, 2000, 2001, 2002

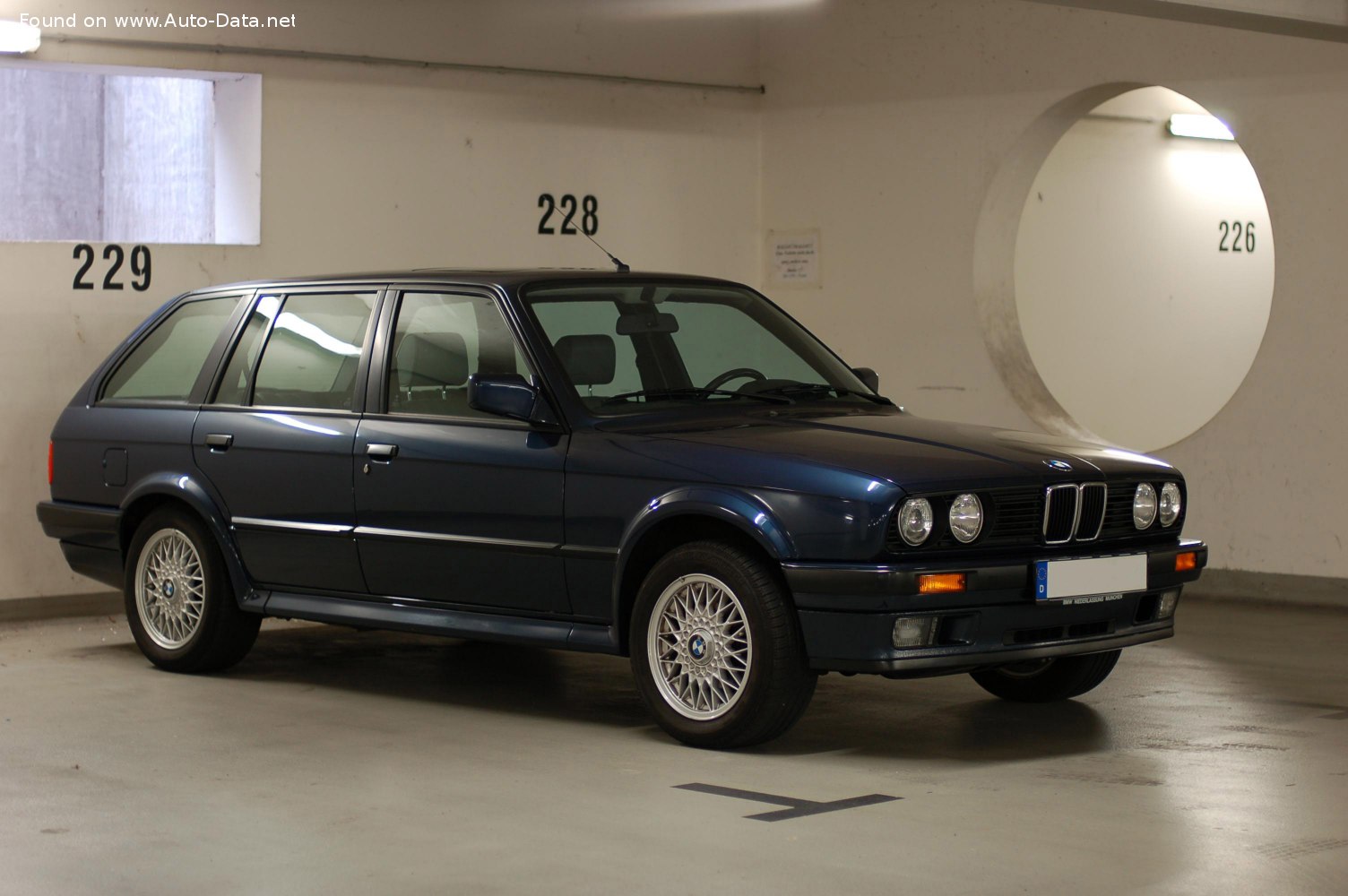

Specifications: BMW 3 Series Touring (E30, facelift 1987) 325i (170 Hp) Automatic 1987, 1988, 1989, 1990, 1991, 1992, 1993

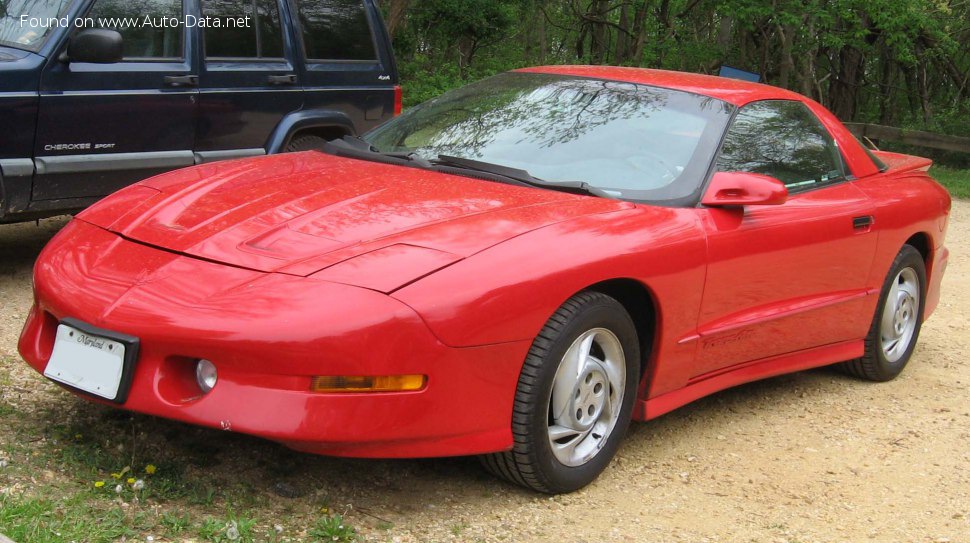

Specifications: Pontiac Firebird IV 3.8i V6 (208 Hp) 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002
Specifications: BMW 5 Series Sedan (G30 LCI, facelift 2020) 520i (184 Hp) Mild Hybrid Steptronic 2020, 2021, 2022, 2023
Specifications: Lancia Thema (834) 2000 16V Turbo (201 Hp) 1992, 1993, 1994

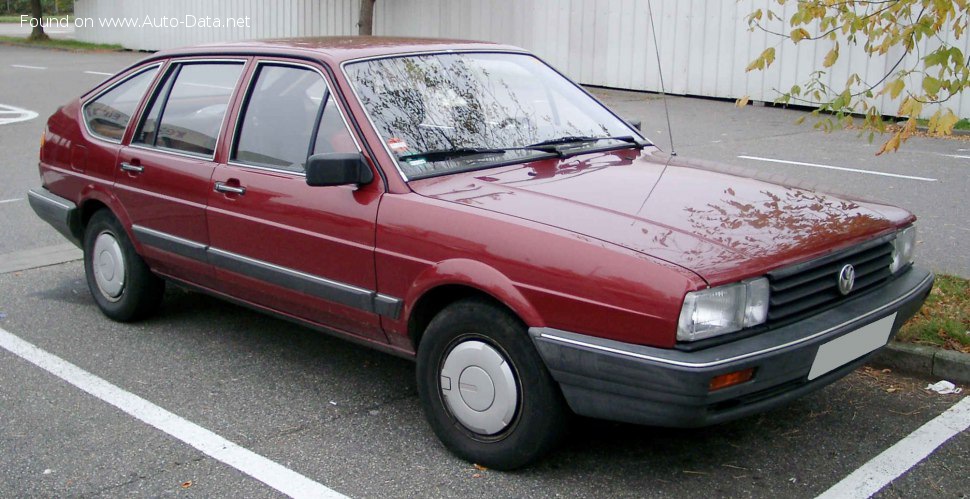

Specifications: Volkswagen Passat Hatchback (B2; facelift 1985) 1.8 (90 Hp) 1985, 1986, 1987, 1988
