Specifications: BMW 5 Series (E60) 525d (177 Hp) Steptronic 2004, 2005, 2006, 2007

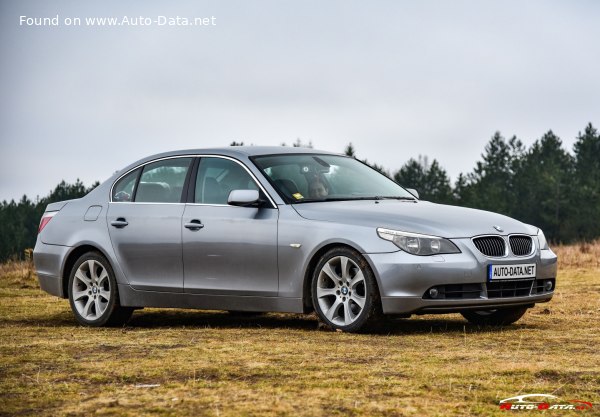

2003 BMW 5 Series (E60) - Photo 1

BMW 5 Series (E60) 525d (177 Hp) Steptronic – Full specifications
General information
Brand BMW
Model 5 Series
Generation 5 Series (E60)
Modification (Engine) 525d (177 Hp) Steptronic
Start of production March, 2004 year
End of production March, 2007 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban (NEDC) 10.6 l/100 km
22.2 US mpg
26.6 UK mpg
9.4 km/l
Fuel consumption (economy) – extra urban (NEDC) 6.2 l/100 km
37.9 US mpg
45.6 UK mpg
16.1 km/l
Fuel consumption (economy) – combined (NEDC) 7.8 l/100 km
30.2 US mpg
36.2 UK mpg
12.8 km/l
CO2 emissions (NEDC) 208 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 8.3 sec
Acceleration 0 – 62 mph 8.3 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 7.9 sec
Maximum speed 227 km/h
141.05 mph
Emission standard Euro 4
Weight-to-power ratio 9 kg/Hp, 111 Hp/tonne
Weight-to-torque ratio 4 kg/Nm, 250.8 Nm/tonne
Engine specs
Power 177 Hp @ 4000 rpm.
Power per litre 70.9 Hp/l
Torque 400 Nm @ 2000-2750 rpm.
295.02 lb.-ft. @ 2000-2750 rpm.
Engine layout Front, Longitudinal
Engine Model/Code M57D25TU
Engine displacement 2497 cm3
152.38 cu. in.
Number of cylinders 6
Engine configuration Inline
Cylinder Bore 84 mm
3.31 in.
Piston Stroke 75.1 mm
2.96 in.
Compression ratio 17:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 8.25 l
8.72 US qt | 7.26 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 9.8 l
10.36 US qt | 8.62 UK qt
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1595 kg
3516.37 lbs.
Max. weight 2155 kg
4750.96 lbs.
Max load 560 kg
1234.59 lbs.
Trunk (boot) space – minimum 520 l
18.36 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Max. roof load 100 kg
220.46 lbs.
Permitted trailer load with brakes (8%) 2000 kg
4409.25 lbs.
Permitted trailer load with brakes (12%) 2000 kg
4409.25 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 90 kg
198.42 lbs.
Dimensions
Length 4841 mm
190.59 in.
Width 1846 mm
72.68 in.
Width including mirrors 2030 mm
79.92 in.
Height 1468 mm
57.8 in.
Wheelbase 2888 mm
113.7 in.
Front track 1558 mm
61.34 in.
Rear (Back) track 1582 mm
62.28 in.
Front overhang 852 mm
33.54 in.
Rear overhang 1101 mm
43.35 in.
Drag coefficient (Cd) 0.28
Minimum turning circle (turning diameter) 11.4 m
37.4 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission Steptronic
Front suspension Spring Strut, Transverse stabilizer
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs, 310×24 mm
Rear brakes Ventilated discs, 320×20 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size Front wheel tires: 225/55 R16; 225/50 R17; 245/45 R17; 245/40 R18; 245/35 R19
Rear wheel tires: 225/55 R16; 225/50 R17; 245/45 R17; 245/40 R18; 275/35 R18; 275/30 R19
Wheel rims size Front wheel rims: 7J x 16; 7.5J x 17; 8J x 17; 8J x 18; 8J x 19
Rear wheel rims: 7J x 16; 7.5J x 17; 8J x 17; 8J x 18; 9J x 18; 9.5J x 19
