Specifications: BMW 5 Series (E60 LCI, facelift 2007) 528i (230 Hp) 2007, 2008, 2009, 2010

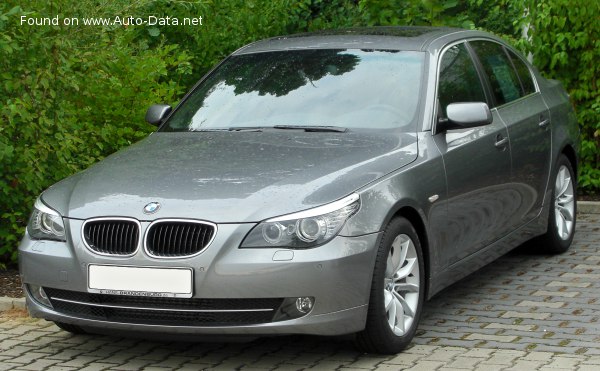

2008 BMW 5 Series (E60 LCI, facelift 2007) - Photo 1

BMW 5 Series (E60 LCI, facelift 2007) 528i (230 Hp) – Full specifications
General information
Brand BMW
Model 5 Series
Generation 5 Series (E60 LCI, facelift 2007)
Modification (Engine) 528i (230 Hp)
Start of production 2007 year
End of production 2010 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 13.1 l/100 km
18 US mpg
21.6 UK mpg
7.6 km/l
Fuel consumption (economy) – extra urban 8.4 l/100 km
28 US mpg
33.6 UK mpg
11.9 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 60 mph 6.5 sec
Maximum speed 241 km/h, Electronically limited
149.75 mph
Weight-to-power ratio 6.9 kg/Hp, 144.7 Hp/tonne
Weight-to-torque ratio 5.9 kg/Nm, 169.8 Nm/tonne
Engine specs
Power 230 Hp @ 6500 rpm.
Power per litre 76.8 Hp/l
Torque 270 Nm @ 2750 rpm.
199.14 lb.-ft. @ 2750 rpm.
Engine layout Front, Longitudinal
Engine Model/Code N52B30
Engine displacement 2996 cm3
182.83 cu. in.
Number of cylinders 6
Engine configuration Inline
Cylinder Bore 85 mm
3.35 in.
Piston Stroke 88 mm
3.46 in.
Compression ratio 10.7:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, Double-VANOS
Engine oil capacity 6.5 l
6.87 US qt | 5.72 UK qt
Engine oil specification Log in to see.Log in to see.

Space, Volume and weights
Kerb Weight 1590 kg
3505.35 lbs.
Max. weight 2090 kg
4607.66 lbs.
Max load 500 kg
1102.31 lbs.
Trunk (boot) space – minimum 520 l
18.36 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Max. roof load 100 kg
220.46 lbs.
Dimensions
Length 4854 mm
191.1 in.
Width 1846 mm
72.68 in.
Width including mirrors 2030 mm
79.92 in.
Height 1468 mm
57.8 in.
Wheelbase 2888 mm
113.7 in.
Front track 1557 mm
61.3 in.
Rear (Back) track 1582 mm
62.28 in.
Drag coefficient (Cd) 0.29
Minimum turning circle (turning diameter) 11.4 m
37.4 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Spring Strut, Transverse stabilizer
Rear suspension Independent multi-link suspension, Transverse stabilizer
Front brakes Ventilated discs, 325 mm
Rear brakes Ventilated discs, 320 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 225/50 R17
Wheel rims size 7.5J x 17
