Specifications: BMW 5 Series Sedan (F10) 525d (218 Hp) xDrive Steptronic 2011, 2012, 2013

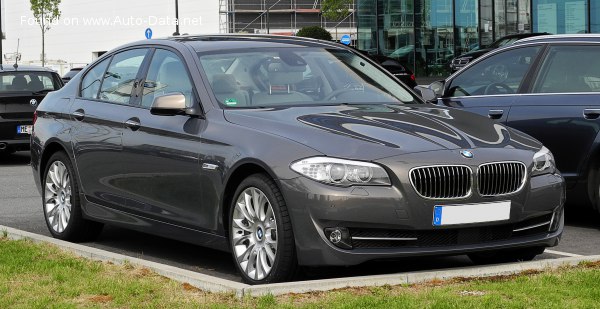

2010 BMW 5 Series Sedan (F10) - Photo 1

BMW 5 Series Sedan (F10) 525d (218 Hp) xDrive Steptronic – Full specifications
General information
Brand BMW
Model 5 Series
Generation 5 Series Sedan (F10)
Modification (Engine) 525d (218 Hp) xDrive Steptronic
Start of production 2011 year
End of production 2013 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 6.0-6.2 l/100 km
39.2 – 37.9 US mpg
47.1 – 45.6 UK mpg
16.7 – 16.1 km/l
Fuel consumption (economy) – extra urban 4.6-4.8 l/100 km
51.1 – 49 US mpg
61.4 – 58.9 UK mpg
21.7 – 20.8 km/l
Fuel consumption (economy) – combined 5.1-5.3 l/100 km
46.1 – 44.4 US mpg
55.4 – 53.3 UK mpg
19.6 – 18.9 km/l
CO2 emissions 134-140 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 7 sec
Acceleration 0 – 62 mph 7 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 6.7 sec
Maximum speed 234 km/h
145.4 mph
Emission standard Euro 5
Weight-to-power ratio 7.9 kg/Hp, 126.7 Hp/tonne
Weight-to-torque ratio 3.8 kg/Nm, 261.6 Nm/tonne
Engine specs
Power 218 Hp @ 4400 rpm.
Power per litre 109.3 Hp/l
Torque 450 Nm @ 1500-2500 rpm.
331.9 lb.-ft. @ 1500-2500 rpm.
Engine layout Front, Longitudinal
Engine Model/Code N47D20D
Engine displacement 1995 cm3
121.74 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 84 mm
3.31 in.
Piston Stroke 90 mm
3.54 in.
Compression ratio 16.5:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Twin-power turbo, Intercooler
Engine oil capacity 5.2 l
5.49 US qt | 4.58 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8 l
8.45 US qt | 7.04 UK qt
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1720 kg
3791.95 lbs.
Max. weight 2320 kg
5114.72 lbs.
Max load 600 kg
1322.77 lbs.
Trunk (boot) space – minimum 520 l
18.36 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Max. roof load 100 kg
220.46 lbs.
Permitted trailer load with brakes (12%) 2000 kg
4409.25 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 90 kg
198.42 lbs.
Dimensions
Length 4899 mm
192.87 in.
Width 1860 mm
73.23 in.
Height 1464 mm
57.64 in.
Wheelbase 2968 mm
116.85 in.
Front track 1600 mm
62.99 in.
Rear (Back) track 1627 mm
64.06 in.
Ride height (ground clearance) 141 mm
5.55 in.
Drag coefficient (Cd) 0.29
Minimum turning circle (turning diameter) 11.95 m
39.21 ft.
Drivetrain, brakes and suspension specs
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 8 gears, automatic transmission Steptronic
Front suspension Double wishbone
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 225/55 R17; 245/45 R18; 275/40 R18; 245/40 R19; 275/35 R19; 245/35 R20; 275/30 R20
Wheel rims size 8J x 17; 8J x 18; 9J x 18; 8.5J x 19; 9J x 19; 8.5J x 20; 9J x 20
