Specifications: BMW 5 Series Sedan (G30 LCI, facelift 2020) 520i (184 Hp) Mild Hybrid Steptronic 2020, 2021, 2022, 2023

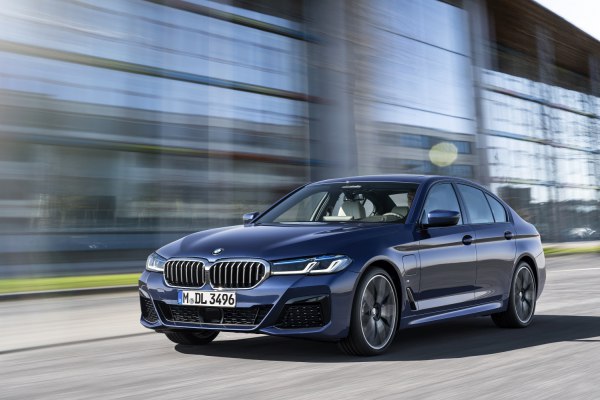

2021 BMW 5 Series Sedan (G30 LCI, facelift 2020) - Photo 1

BMW 5 Series Sedan (G30 LCI, facelift 2020) 520i (184 Hp) Mild Hybrid Steptronic – Full specifications
General information
Brand BMW
Model 5 Series
Generation 5 Series Sedan (G30 LCI, facelift 2020)
Modification (Engine) 520i (184 Hp) Mild Hybrid Steptronic
Start of production 2020 year
End of production 2023 year
Powertrain Architecture MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 6.5-6.8 l/100 km
36.2 – 34.6 US mpg
43.5 – 41.5 UK mpg
15.4 – 14.7 km/l
Fuel consumption (economy) – extra urban 4.6-4.7 l/100 km
51.1 – 50 US mpg
61.4 – 60.1 UK mpg
21.7 – 21.3 km/l
Fuel consumption (economy) – combined 5.3-5.5 l/100 km
44.4 – 42.8 US mpg
53.3 – 51.4 UK mpg
18.9 – 18.2 km/l
CO2 emissions 120-125 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 7.9 sec
Acceleration 0 – 62 mph 7.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 7.5 sec
Maximum speed 235 km/h
146.02 mph
Emission standard EURO 6d
Weight-to-power ratio 8.8 kg/Hp, 114.3 Hp/tonne
Weight-to-torque ratio 5.6 kg/Nm, 180.1 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 0.528 kWh
Electric motor 1
Electric motor power 11 Hp
Internal combustion engine specs
Power 184 Hp @ 5000-6500 rpm.
Power per litre 92.1 Hp/l
Torque 290 Nm @ 1350-4250 rpm.
213.89 lb.-ft. @ 1350-4250 rpm.
Engine layout Front, Longitudinal
Engine Model/Code B48B20A
Engine displacement 1998 cm3
121.93 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 82 mm
3.23 in.
Piston Stroke 94.6 mm
3.72 in.
Compression ratio 11:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Twin-power turbo, Intercooler
Valvetrain VALVETRONIC
Engine oil capacity 5.25 l
5.55 US qt | 4.62 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 9.9 l
10.46 US qt | 8.71 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1610 kg
3549.44 lbs.
Max. weight 2285 kg
5037.56 lbs.
Max load 675 kg
1488.12 lbs.
Trunk (boot) space – minimum 530 l
18.72 cu. ft.
Fuel tank capacity 68 l
17.96 US gal | 14.96 UK gal
Max. roof load 100 kg
220.46 lbs.
Permitted trailer load with brakes (12%) 2000 kg
4409.25 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 90 kg
198.42 lbs.
Dimensions
Length 4963 mm
195.39 in.
Width 1868 mm
73.54 in.
Height 1479 mm
58.23 in.
Wheelbase 2975 mm
117.13 in.
Front track 1605 mm
63.19 in.
Rear (Back) track 1630 mm
64.17 in.
Ride height (ground clearance) 144 mm
5.67 in.
Drag coefficient (Cd) 0.23
Minimum turning circle (turning diameter) 12.0 m
39.37 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and electric motor drive the rear wheels of the car with the ability to work only in mixed mode.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 8 gears, automatic transmission Steptronic
Front suspension Double wishbone
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 225/55 R17 101Y XL
Wheel rims size 7.5J x 17
