Specifications: BMW 5 Series Sedan (G60) 530e (299 Hp) Plug-in Hybrid xDrive Steptronic 2024, 2025

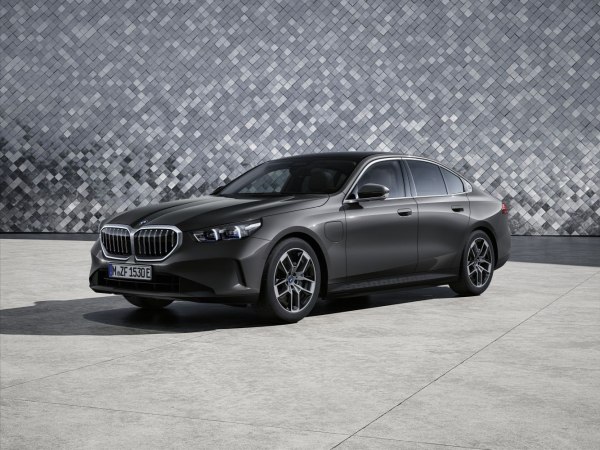

2024 BMW 5 Series Sedan (G60) - Photo 1

BMW 5 Series Sedan (G60) 530e (299 Hp) Plug-in Hybrid xDrive Steptronic – Full specifications
General information
Brand BMW
Model 5 Series
Generation 5 Series Sedan (G60)
Modification (Engine) 530e (299 Hp) Plug-in Hybrid xDrive Steptronic
Start of production July, 2024 year
Powertrain Architecture PHEV (Plug-in Hybrid Electric Vehicle)
Body type Sedan
Seats 5
Doors 4
Performance specs
Combined fuel consumption (WLTP) 0.7-1 l/100 km
336 – 235.2 US mpg
403.5 – 282.5 UK mpg
142.9 – 100 km/l
CO2 emissions (WLTP) 17-22 g/km
Fuel Type Petrol / electricity
Acceleration 0 – 100 km/h 6.3 sec
Acceleration 0 – 62 mph 6.3 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 6 sec
Maximum speed 225 km/h
139.81 mph
Emission standard Euro 6e
Weight-to-power ratio 6.9 kg/Hp, 145.5 Hp/tonne
Weight-to-torque ratio 4.6 kg/Nm, 219 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 22.1 kWh
Net (usable) battery capacity 19.4 kWh
Battery voltage 347.5 V
Battery technology Lithium-ion (Li-Ion)
Battery location Below the floor
All-electric range (WLTP) 82-95 km
50.95 – 59.03 mi
Average Energy consumption (WLTP) 21.1-23.3 kWh/100 km

33.96 – 37.5 kWh/100 mi
99 – 90 MPGe
4.7 – 4.3 km/kWh
2.9 – 2.7 mi/kWh
Max speed (electric) 140 km/h

86.99 mph
Charging ports Log in to see.Log in to see.
Electric motor 1
Electric motor power 184 Hp @ 7000 rpm.
Electric motor Torque 250 Nm @ 100-5500 rpm.

184.39 lb.-ft. @ 100-5500 rpm.
Electric motor location Between the combustion engine and the transmission
Electric motor type Synchronous
System power 299 Hp
System torque 450 Nm
331.9 lb.-ft.
Internal combustion engine specs
Power 190 Hp @ 4400-6500 rpm.
Power per litre 95.1 Hp/l
Torque 310 Nm @ 1500-4000 rpm.
228.64 lb.-ft. @ 1500-4000 rpm.
Engine layout Front, Longitudinal
Engine Model/Code B48B20V
Engine displacement 1998 cm3
121.93 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 82 mm
3.23 in.
Piston Stroke 94.6 mm
3.72 in.
Compression ratio 11.6:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Twin-scroll turbo, Intercooler
Valvetrain VALVETRONIC, Double-VANOS
Engine oil capacity 5.25 l
5.55 US qt | 4.62 UK qt
Engine oil specification Log in to see.Log in to see.
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 2055 kg
4530.5 lbs.
Max. weight 2730 kg
6018.62 lbs.
Max load 675 kg
1488.12 lbs.
Trunk (boot) space – minimum 520 l
18.36 cu. ft.
Fuel tank capacity 60 l
15.85 US gal | 13.2 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (12%) 2000 kg
4409.25 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 100 kg
220.46 lbs.
Dimensions
Length 5060 mm
199.21 in.
Width 1900 mm
74.8 in.
Width including mirrors 2156 mm
84.88 in.
Height 1515 mm
59.65 in.
Wheelbase 2995 mm
117.91 in.
Front track 1622 mm
63.86 in.
Rear (Back) track 1658 mm
65.28 in.
Front overhang 945 mm
37.2 in.
Rear overhang 1120 mm
44.09 in.
Ride height (ground clearance) 146 mm
5.75 in.
Drag coefficient (Cd) 0.24
Minimum turning circle (turning diameter) 12.3 m
40.35 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and the electric motor permanently drive the four wheels of the car with the ability to work in full electric or mixed mode.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 8 gears, automatic transmission Steptronic
Front suspension Coil spring, Double wishbone, Transverse stabilizer
Rear suspension Independent multi-link suspension, Air suspension, Transverse stabilizer
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 245/45 R19
Wheel rims size 8.5J x 19
