Specifications: BMW 5 Series Touring (E39, Facelift 2000) 525i (192 Hp) Steptronic 2000, 2001, 2002, 2003, 2004

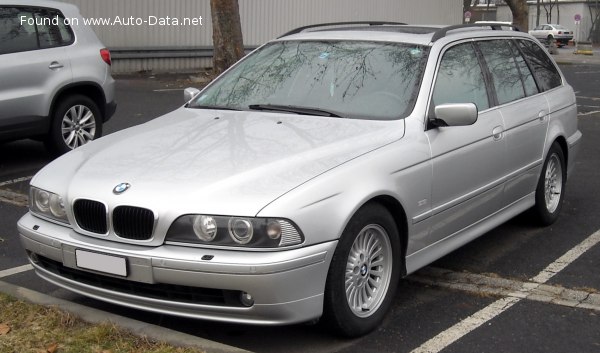

2000 BMW 5 Series Touring (E39, Facelift 2000) - Photo 1

BMW 5 Series Touring (E39, Facelift 2000) 525i (192 Hp) Steptronic – Full specifications
General information
Brand BMW
Model 5 Series
Generation 5 Series Touring (E39, Facelift 2000)
Modification (Engine) 525i (192 Hp) Steptronic
Start of production 2000 year
End of production 2004 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 14.7 l/100 km
16 US mpg
19.2 UK mpg
6.8 km/l
Fuel consumption (economy) – extra urban 8 l/100 km
29.4 US mpg
35.3 UK mpg
12.5 km/l
Fuel consumption (economy) – combined 10.5 l/100 km
22.4 US mpg
26.9 UK mpg
9.5 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 9.3 sec
Acceleration 0 – 62 mph 9.3 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 8.8 sec
Maximum speed 229 km/h
142.29 mph
Weight-to-power ratio 8.8 kg/Hp, 114.3 Hp/tonne
Weight-to-torque ratio 6.9 kg/Nm, 145.8 Nm/tonne
Engine specs
Power 192 Hp @ 6000 rpm.
Power per litre 77 Hp/l
Torque 245 Nm @ 3500 rpm.
180.7 lb.-ft. @ 3500 rpm.
Engine layout Front, Longitudinal
Engine Model/Code M54B25
Engine displacement 2494 cm3
152.19 cu. in.
Number of cylinders 6
Engine configuration Inline
Cylinder Bore 84 mm
3.31 in.
Piston Stroke 75 mm
2.95 in.
Compression ratio 10.5:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 6.5 l
6.87 US qt | 5.72 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 10.5 l
11.1 US qt | 9.24 UK qt

Space, Volume and weights
Kerb Weight 1680 kg
3703.77 lbs.
Max. weight 2205 kg
4861.19 lbs.
Max load 525 kg
1157.43 lbs.
Trunk (boot) space – minimum 410 l
14.48 cu. ft.
Trunk (boot) space – maximum 1525 l
53.85 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Dimensions
Length 4805 mm
189.17 in.
Width 1800 mm
70.87 in.
Height 1445 mm
56.89 in.
Wheelbase 2830 mm
111.42 in.
Front track 1512 mm
59.53 in.
Rear (Back) track 1527 mm
60.12 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 5 gears, automatic transmission
Front suspension Wishbone
Rear suspension Inclined Lever
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 225/60 R15
Wheel rims size 15
