Specifications: BMW 5 Series Touring (E61) 530d (218 Hp) 2004, 2005

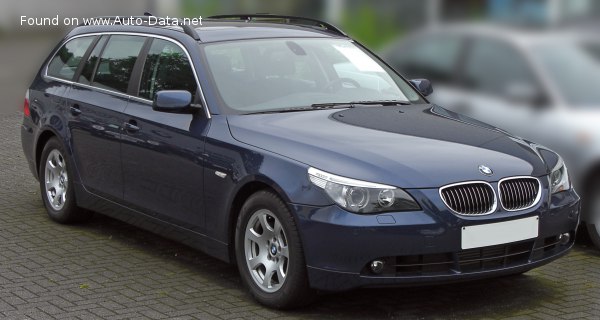

2004 BMW 5 Series Touring (E61) - Photo 1

BMW 5 Series Touring (E61) 530d (218 Hp) – Full specifications
General information
Brand BMW
Model 5 Series
Generation 5 Series Touring (E61)
Modification (Engine) 530d (218 Hp)
Start of production 2004 year
End of production 2005 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 8.2 l/100 km
28.7 US mpg
34.4 UK mpg
12.2 km/l
Fuel consumption (economy) – extra urban 4.8 l/100 km
49 US mpg
58.9 UK mpg
20.8 km/l
Fuel consumption (economy) – combined 6 l/100 km
39.2 US mpg
47.1 UK mpg
16.7 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 7.2 sec
Acceleration 0 – 62 mph 7.2 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 6.8 sec
Maximum speed 243 km/h
150.99 mph
Weight-to-power ratio 8.1 kg/Hp, 123.9 Hp/tonne
Weight-to-torque ratio 3.5 kg/Nm, 284.1 Nm/tonne
Engine specs
Power 218 Hp @ 4000 rpm.
Power per litre 72.8 Hp/l
Torque 500 Nm @ 2000 rpm.
368.78 lb.-ft. @ 2000 rpm.
Engine layout Front, Longitudinal
Engine Model/Code M57D30TU
Engine displacement 2993 cm3
182.64 cu. in.
Number of cylinders 6
Engine configuration Inline
Cylinder Bore 84 mm
3.31 in.
Piston Stroke 90 mm
3.54 in.
Compression ratio 17:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 8.25 l
8.72 US qt | 7.26 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 9.8 l
10.36 US qt | 8.62 UK qt

Space, Volume and weights
Kerb Weight 1760 kg
3880.14 lbs.
Max. weight 2285 kg
5037.56 lbs.
Max load 525 kg
1157.43 lbs.
Trunk (boot) space – minimum 500 l
17.66 cu. ft.
Trunk (boot) space – maximum 1650 l
58.27 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Dimensions
Length 4843 mm
190.67 in.
Width 1846 mm
72.68 in.
Height 1491 mm
58.7 in.
Wheelbase 2886 mm
113.62 in.
Front track 1558 mm
61.34 in.
Rear (Back) track 1581 mm
62.24 in.
Drag coefficient (Cd) 0.30
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Coil spring
Rear suspension Coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 225/55 R16 W
Wheel rims size 7J x 16
