Specifications: BMW 5 Series Touring (F11 LCI, Facelift 2013) 518d (143 Hp) Steptronic 2013, 2014

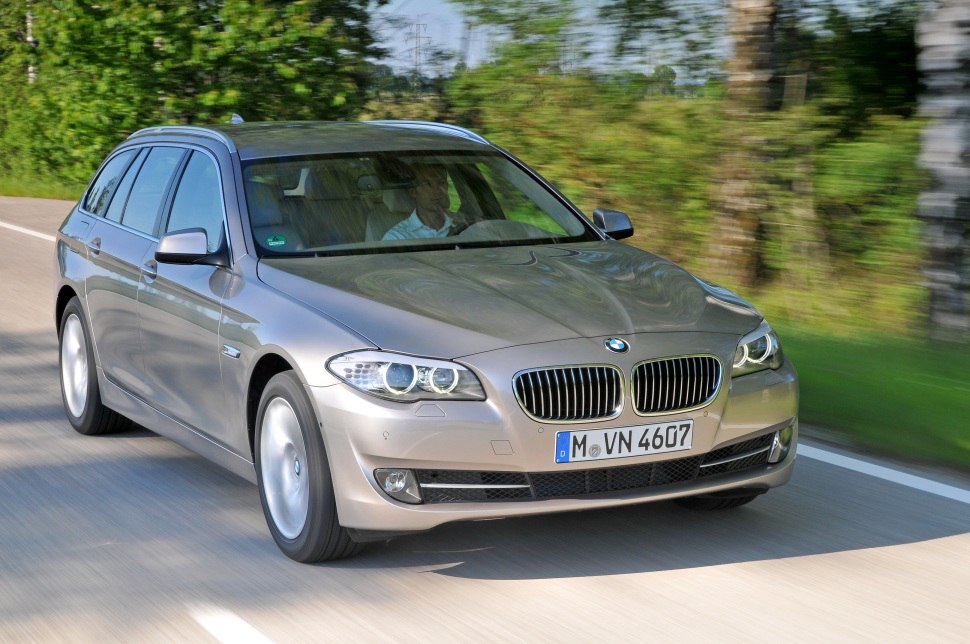

2013 BMW 5 Series Touring (F11 LCI, Facelift 2013) - Photo 1

BMW 5 Series Touring (F11 LCI, Facelift 2013) 518d (143 Hp) Steptronic – Full specifications
General information
Brand BMW
Model 5 Series
Generation 5 Series Touring (F11 LCI, Facelift 2013)
Modification (Engine) 518d (143 Hp) Steptronic
Start of production 2013 year
End of production 2014 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 5.7-6.2 l/100 km
41.3 – 37.9 US mpg
49.6 – 45.6 UK mpg
17.5 – 16.1 km/l
Fuel consumption (economy) – extra urban 4.4-4.8 l/100 km
53.5 – 49 US mpg
64.2 – 58.9 UK mpg
22.7 – 20.8 km/l
Fuel consumption (economy) – combined 4.9-5.3 l/100 km
48 – 44.4 US mpg
57.6 – 53.3 UK mpg
20.4 – 18.9 km/l
CO2 emissions 129-139 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 10 sec
Acceleration 0 – 62 mph 10 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.5 sec
Maximum speed 205 km/h
127.38 mph
Emission standard Euro 6
Weight-to-power ratio 12.1 kg/Hp, 82.7 Hp/tonne
Weight-to-torque ratio 4.8 kg/Nm, 208.1 Nm/tonne
Engine specs
Power 143 Hp @ 4000 rpm.
Power per litre 71.7 Hp/l
Torque 360 Nm @ 1750-2500 rpm.
265.52 lb.-ft. @ 1750-2500 rpm.
Engine layout Front, Longitudinal
Engine Model/Code N47D20C
Engine displacement 1995 cm3
121.74 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 84 mm
3.31 in.
Piston Stroke 90 mm
3.54 in.
Compression ratio 16.5:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Twin-power turbo, Intercooler
Engine oil capacity 5.2 l
5.49 US qt | 4.58 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7.2 l
7.61 US qt | 6.34 UK qt
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1730 kg
3814 lbs.
Max. weight 2380 kg
5247 lbs.
Max load 650 kg
1433 lbs.
Trunk (boot) space – minimum 560 l
19.78 cu. ft.
Trunk (boot) space – maximum 1670 l
58.98 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Max. roof load 100 kg
220.46 lbs.
Permitted trailer load with brakes (12%) 2000 kg
4409.25 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 90 kg
198.42 lbs.
Dimensions
Length 4907 mm
193.19 in.
Width 1860 mm
73.23 in.
Height 1462 mm
57.56 in.
Wheelbase 2968 mm
116.85 in.
Front track 1600 mm
62.99 in.
Rear (Back) track 1626 mm
64.02 in.
Ride height (ground clearance) 141 mm
5.55 in.
Minimum turning circle (turning diameter) 12.0 m
39.37 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 8 gears, automatic transmission Steptronic
Front suspension Double wishbone
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 225/55 R17; 245/45 R18; 245/40 R19
Wheel rims size 8J x 17; 8J x 18; 8.5J x 19
