Specifications: BMW 5 Series Touring (G31 LCI, facelift 2020) 530i (252 Hp) Mild Hybrid xDrive Steptronic 2020, 2021, 2022

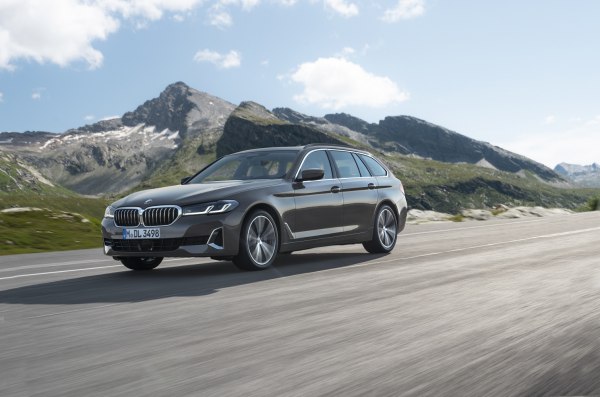

2021 BMW 5 Series Touring (G31 LCI, facelift 2020) - Photo 1

BMW 5 Series Touring (G31 LCI, facelift 2020) 530i (252 Hp) Mild Hybrid xDrive Steptronic – Full specifications
General information
Brand BMW
Model 5 Series
Generation 5 Series Touring (G31 LCI, facelift 2020)
Modification (Engine) 530i (252 Hp) Mild Hybrid xDrive Steptronic
Start of production July, 2020 year
End of production June, 2022 year
Powertrain Architecture MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 7.6-7.9 l/100 km
30.9 – 29.8 US mpg
37.2 – 35.8 UK mpg
13.2 – 12.7 km/l
Fuel consumption (economy) – extra urban 5.4-5.6 l/100 km
43.6 – 42 US mpg
52.3 – 50.4 UK mpg
18.5 – 17.9 km/l
Fuel consumption (economy) – combined 6.2-6.4 l/100 km
37.9 – 36.8 US mpg
45.6 – 44.1 UK mpg
16.1 – 15.6 km/l
CO2 emissions 142-147 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 6.6 sec
Acceleration 0 – 62 mph 6.6 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 6.3 sec
Maximum speed 250 km/h
155.34 mph
Emission standard EURO 6d
Weight-to-power ratio 7.1 kg/Hp, 140.8 Hp/tonne
Weight-to-torque ratio 5.1 kg/Nm, 195.5 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 0.528 kWh
Electric motor 1
Electric motor power 11 Hp
Internal combustion engine specs
Power 252 Hp @ 5200-6500 rpm.
Power per litre 126.1 Hp/l
Torque 350 Nm @ 1450-4800 rpm.
258.15 lb.-ft. @ 1450-4800 rpm.
Engine layout Front, Longitudinal
Engine Model/Code B48B20B
Engine displacement 1998 cm3
121.93 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 82 mm
3.23 in.
Piston Stroke 94.6 mm
3.72 in.
Compression ratio 10.2:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Twin-power turbo, Intercooler
Valvetrain VALVETRONIC
Engine oil capacity 5.25 l
5.55 US qt | 4.62 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 9.9 l
10.46 US qt | 8.71 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1790 kg
3946.27 lbs.
Max. weight 2490 kg
5489.51 lbs.
Max load 700 kg
1543.24 lbs.
Trunk (boot) space – minimum 560 l
19.78 cu. ft.
Trunk (boot) space – maximum 1700 l
60.03 cu. ft.
Fuel tank capacity 68 l
17.96 US gal | 14.96 UK gal
Max. roof load 100 kg
220.46 lbs.
Permitted trailer load with brakes (12%) 2000 kg
4409.25 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 90 kg
198.42 lbs.
Dimensions
Length 4963 mm
195.39 in.
Width 1868 mm
73.54 in.
Height 1498 mm
58.98 in.
Wheelbase 2975 mm
117.13 in.
Front track 1605 mm
63.19 in.
Rear (Back) track 1630 mm
64.17 in.
Ride height (ground clearance) 140 mm
5.51 in.
Drag coefficient (Cd) 0.27
Minimum turning circle (turning diameter) 12.4 m
40.68 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and the electric motor permanently drive the four wheels of the car with the ability to work only in mixed mode.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 8 gears, automatic transmission Steptronic
Front suspension Double wishbone
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 225/55 R17 101Y XL
Wheel rims size 7.5J x 17
