Specifications: BMW 6 Series (E24, facelift 1982) M 635CSi (286 Hp) 1984, 1985, 1986, 1987

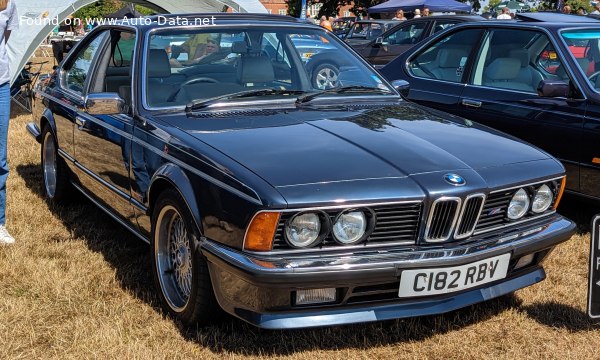

1982 BMW 6 Series (E24, facelift 1982) - Photo 1

BMW 6 Series (E24, facelift 1982) M 635CSi (286 Hp) – Full specifications
General information
Brand BMW
Model 6 Series
Generation 6 Series (E24, facelift 1982)
Modification (Engine) M 635CSi (286 Hp)
Start of production 1984 year
End of production 1987 year
Powertrain Architecture Internal Combustion engine
Body type Coupe
Seats 4
Doors 2
Performance specs
Fuel consumption (economy) – urban 16.5 l/100 km
14.3 US mpg
17.1 UK mpg
6.1 km/l
Fuel consumption (economy) – extra urban 7.8 l/100 km
30.2 US mpg
36.2 UK mpg
12.8 km/l
Fuel consumption (economy) – combined 11.3 l/100 km
20.8 US mpg
25 UK mpg
8.8 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 6.4 sec
Acceleration 0 – 62 mph 6.4 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 6.1 sec
Maximum speed 255 km/h
158.45 mph
Weight-to-power ratio 5.2 kg/Hp, 190.7 Hp/tonne
Weight-to-torque ratio 4.4 kg/Nm, 226.7 Nm/tonne
Engine specs
Power 286 Hp @ 6500 rpm.
Power per litre 82.8 Hp/l
Torque 340 Nm @ 4500 rpm.
250.77 lb.-ft. @ 4500 rpm.
Engine layout Front, Longitudinal
Engine Model/Code M88
Engine displacement 3453 cm3
210.71 cu. in.
Number of cylinders 6
Engine configuration Inline
Cylinder Bore 93.4 mm
3.68 in.
Piston Stroke 84 mm
3.31 in.
Compression ratio 10.5:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Engine oil capacity 5.8 l
6.13 US qt | 5.1 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 12 l
12.68 US qt | 10.56 UK qt

Space, Volume and weights
Kerb Weight 1500 kg
3306.93 lbs.
Max. weight 1850 kg
4078.55 lbs.
Max load 350 kg
771.62 lbs.
Trunk (boot) space – minimum 335 l
11.83 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Dimensions
Length 4755 mm
187.2 in.
Width 1725 mm
67.91 in.
Height 1355 mm
53.35 in.
Wheelbase 2625 mm
103.35 in.
Front track 1430 mm
56.3 in.
Rear (Back) track 1464 mm
57.64 in.
Drag coefficient (Cd) 0.39
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent coil spring
Front brakes Ventilated discs
Rear brakes Disc
Steering type Cone worm with recirculation balls
Tires size 195/70 R14
Wheel rims size 6.5J x 14
