Specifications: BMW 6 Series Gran Turismo (G32 LCI, facelift 2020) 630i (258 Hp) Mild Hybrid Steptronic 2020, 2021, 2022

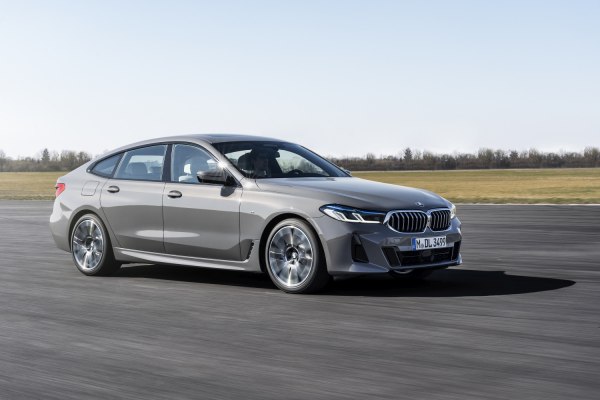

2020 BMW 6 Series Gran Turismo (G32 LCI, facelift 2020) - Photo 1

BMW 6 Series Gran Turismo (G32 LCI, facelift 2020) 630i (258 Hp) Mild Hybrid Steptronic – Full specifications
General information
Brand BMW
Model 6 Series
Generation 6 Series Gran Turismo (G32 LCI, facelift 2020)
Modification (Engine) 630i (258 Hp) Mild Hybrid Steptronic
Start of production 2020 year
End of production 2022 year
Powertrain Architecture MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Body type Grand Tourer
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 7.2-7.4 l/100 km
32.7 – 31.8 US mpg
39.2 – 38.2 UK mpg
13.9 – 13.5 km/l
Fuel consumption (economy) – extra urban 5.2-5.4 l/100 km
45.2 – 43.6 US mpg
54.3 – 52.3 UK mpg
19.2 – 18.5 km/l
Fuel consumption (economy) – combined 5.9-6.1 l/100 km
39.9 – 38.6 US mpg
47.9 – 46.3 UK mpg
16.9 – 16.4 km/l
CO2 emissions 135-139 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 6.5 sec
Acceleration 0 – 62 mph 6.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 6.2 sec
Maximum speed 250 km/h
155.34 mph
Emission standard EURO 6d
Weight-to-power ratio 6.9 kg/Hp, 144.5 Hp/tonne
Weight-to-torque ratio 4.5 kg/Nm, 224.1 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 0.528 kWh
Electric motor 1
Electric motor power 11 Hp
Internal combustion engine specs
Power 258 Hp @ 5000-6500 rpm.
Power per litre 129.1 Hp/l
Torque 400 Nm @ 1550-4400 rpm.
295.02 lb.-ft. @ 1550-4400 rpm.
Engine layout Front, Longitudinal
Engine Model/Code B48B20B
Engine displacement 1998 cm3
121.93 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 82 mm
3.23 in.
Piston Stroke 94.6 mm
3.72 in.
Compression ratio 10.2:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Twin-power turbo, Intercooler
Valvetrain VALVETRONIC
Engine oil capacity 5.25 l
5.55 US qt | 4.62 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 9.9 l
10.46 US qt | 8.71 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1785 kg
3935.25 lbs.
Max. weight 2450 kg
5401.33 lbs.
Max load 665 kg
1466.07 lbs.
Trunk (boot) space – minimum 600 l
21.19 cu. ft.
Trunk (boot) space – maximum 1800 l
63.57 cu. ft.
Fuel tank capacity 68 l
17.96 US gal | 14.96 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (12%) 2100 kg
4629.71 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 100 kg
220.46 lbs.
Dimensions
Length 5091 mm
200.43 in.
Width 1902 mm
74.88 in.
Height 1538 mm
60.55 in.
Wheelbase 3070 mm
120.87 in.
Front track 1615 mm
63.58 in.
Rear (Back) track 1649 mm
64.92 in.
Ride height (ground clearance) 138 mm
5.43 in.
Drag coefficient (Cd) 0.25
Minimum turning circle (turning diameter) 12.3 m
40.35 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and electric motor drive the rear wheels of the car with the ability to work only in mixed mode.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 8 gears, automatic transmission Steptronic
Front suspension Double wishbone
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 225/60 R17 99Y
Wheel rims size 7.5J x 17
