Specifications: BMW 7 Series (E32) 735i (220 Hp) 1986, 1987, 1988, 1989, 1990, 1991, 1992

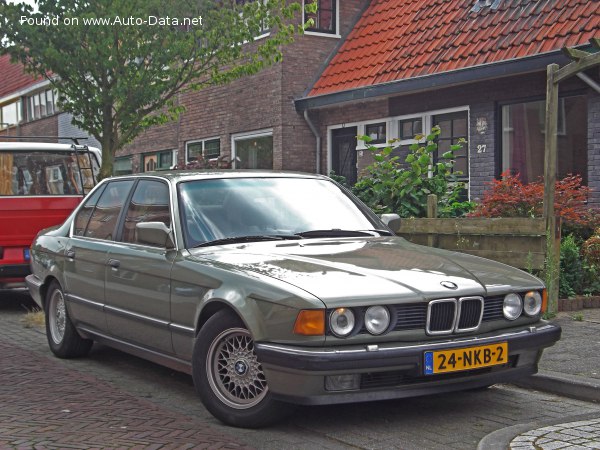

1986 BMW 7 Series (E32) - Photo 1

BMW 7 Series (E32) 735i (220 Hp) – Full specifications
General information
Brand BMW
Model 7 Series
Generation 7 Series (E32)
Modification (Engine) 735i (220 Hp)
Start of production 1986 year
End of production 1992 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 15.9 l/100 km
14.8 US mpg
17.8 UK mpg
6.3 km/l
Fuel consumption (economy) – extra urban 7.7 l/100 km
30.5 US mpg
36.7 UK mpg
13 km/l
Fuel consumption (economy) – combined 11.1 l/100 km
21.2 US mpg
25.4 UK mpg
9 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 7.9 sec
Acceleration 0 – 62 mph 7.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 7.5 sec
Maximum speed 233 km/h
144.78 mph
Weight-to-power ratio 7.3 kg/Hp, 137.5 Hp/tonne
Weight-to-torque ratio 5.1 kg/Nm, 196.9 Nm/tonne
Engine specs
Power 220 Hp @ 5700 rpm.
Power per litre 64.1 Hp/l
Torque 315 Nm @ 4000 rpm.
232.33 lb.-ft. @ 4000 rpm.
Engine layout Front, Longitudinal
Engine Model/Code M30B35
Engine displacement 3430 cm3
209.31 cu. in.
Number of cylinders 6
Engine configuration Inline
Cylinder Bore 92 mm
3.62 in.
Piston Stroke 86 mm
3.39 in.
Compression ratio 9.2:1
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Engine oil capacity 5.75 l
6.08 US qt | 5.06 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 12 l
12.68 US qt | 10.56 UK qt

Space, Volume and weights
Kerb Weight 1600 kg
3527.4 lbs.
Max. weight 2150 kg
4739.94 lbs.
Max load 550 kg
1212.54 lbs.
Trunk (boot) space – minimum 500 l
17.66 cu. ft.
Fuel tank capacity 90 l
23.78 US gal | 19.8 UK gal
Dimensions
Length 4910 mm
193.31 in.
Width 1845 mm
72.64 in.
Height 1411 mm
55.55 in.
Wheelbase 2832 mm
111.5 in.
Front track 1527 mm
60.12 in.
Rear (Back) track 1550 mm
61.02 in.
Drag coefficient (Cd) 0.32
Minimum turning circle (turning diameter) 11.6 m
38.06 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Coil spring
Rear suspension Coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 225/60 R15
Wheel rims size 15
