Specifications: Daihatsu Ayla 1.0 (65 Hp) Automatic /2012, 2013, 2014, 2015, 2016, 2017

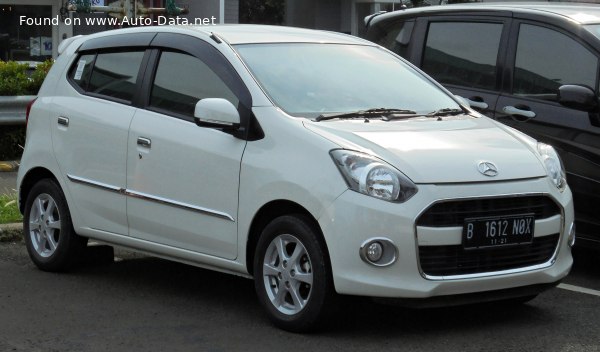

2013 Daihatsu Ayla - Photo 1

Daihatsu Ayla 1.0 (65 Hp) Automatic – Full specifications
General information
Brand Daihatsu
Model Ayla
Generation Ayla
Modification (Engine) 1.0 (65 Hp) Automatic
Start of production 2012 year
End of production 2017 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 11.8 kg/Hp, 85 Hp/tonne
Weight-to-torque ratio 9 kg/Nm, 111.1 Nm/tonne
Engine specs
Power 65 Hp @ 6000 rpm.
Power per litre 65.1 Hp/l
Torque 85 Nm @ 3600 rpm.
62.69 lb.-ft. @ 3600 rpm.
Engine layout Front, Transverse
Engine Model/Code 1KR-DE
Engine displacement 998 cm3
60.9 cu. in.
Number of cylinders 3
Engine configuration Inline
Cylinder Bore 71 mm
2.8 in.
Piston Stroke 84 mm
3.31 in.
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC

Space, Volume and weights
Kerb Weight 765 kg
1686.54 lbs.
Fuel tank capacity 33 l
8.72 US gal | 7.26 UK gal
Dimensions
Length 3600 mm
141.73 in.
Width 1600 mm
62.99 in.
Height 1520 mm
59.84 in.
Wheelbase 2450 mm
96.46 in.
Front track 1430 mm
56.3 in.
Rear (Back) track 1425 mm
56.1 in.
Ride height (ground clearance) 180 mm
7.09 in.
Minimum turning circle (turning diameter) 8.8 m
28.87 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 4 gears, automatic transmission
Front suspension Independent type McPherson
Rear suspension Torsion
Front brakes Disc
Rear brakes Drum
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 155/80 R13
Wheel rims size 4.5J x 13
