Specifications: Daihatsu Ayla (facelift 2017) 1.0 (65 Hp) /2017, 2018, 2019, 2020

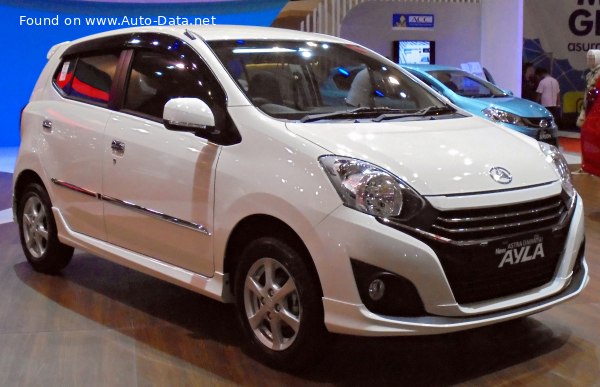

2017 Daihatsu Ayla (facelift 2017) - Photo 1

Daihatsu Ayla (facelift 2017) 1.0 (65 Hp) – Full specifications
General information
Brand Daihatsu
Model Ayla
Generation Ayla (facelift 2017)
Modification (Engine) 1.0 (65 Hp)
Start of production April, 2017 year
End of production March, 2020 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 11.8 kg/Hp, 84.4 Hp/tonne
Weight-to-torque ratio 9 kg/Nm, 111.7 Nm/tonne
Engine specs
Power 65 Hp @ 6000 rpm.
Power per litre 65.1 Hp/l
Torque 86 Nm @ 3600 rpm.
63.43 lb.-ft. @ 3600 rpm.
Engine layout Front, Transverse
Engine Model/Code 1KR-DE
Engine displacement 998 cm3
60.9 cu. in.
Number of cylinders 3
Engine configuration Inline
Cylinder Bore 71 mm
2.8 in.
Piston Stroke 84 mm
3.31 in.
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC

Space, Volume and weights
Kerb Weight 770-800 kg
1697.56 – 1763.7 lbs.
Fuel tank capacity 33 l
8.72 US gal | 7.26 UK gal
Dimensions
Length 3640 mm
143.31 in.
Width 1600 mm
62.99 in.
Height 1520 mm
59.84 in.
Wheelbase 2455 mm
96.65 in.
Front track 1420 mm
55.91 in.
Rear (Back) track 1415 mm
55.71 in.
Ride height (ground clearance) 180 mm
7.09 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent type McPherson
Rear suspension Semi-independent suspension, longitudinal arms with transverse torsion shafts
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 155/80 R13; 175/65 R14
Wheel rims size 13; 14
