Specifications: Daihatsu Charade I (G10) 1.0 (55 Hp) /1977, 1978, 1979, 1980, 1981, 1982, 1983

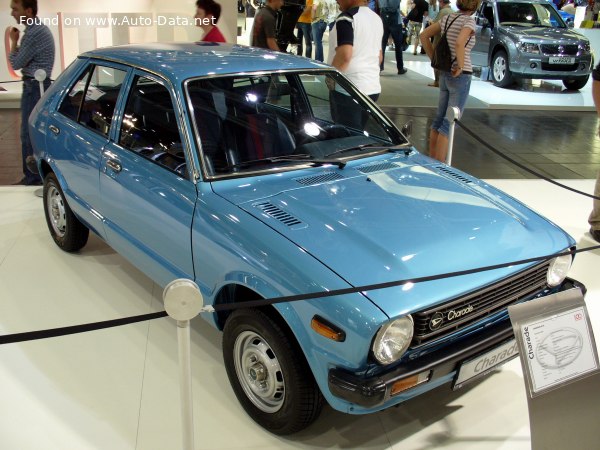

1977 Daihatsu Charade I (G10) - Photo 1

Daihatsu Charade I (G10) 1.0 (55 Hp) – Full specifications
General information
Brand Daihatsu
Model Charade
Generation Charade I (G10)
Modification (Engine) 1.0 (55 Hp)
Start of production 1977 year
End of production 1983 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 11.5 kg/Hp, 87.3 Hp/tonne
Weight-to-torque ratio 8.3 kg/Nm, 120.6 Nm/tonne
Engine specs
Power 55 Hp @ 5500 rpm.
Power per litre 55.4 Hp/l
Torque 76 Nm @ 2800 rpm.
56.05 lb.-ft. @ 2800 rpm.
Engine layout Front, Transverse
Engine Model/Code CB-22
Engine displacement 993 cm3
60.6 cu. in.
Number of cylinders 3
Engine configuration Inline
Cylinder Bore 76 mm
2.99 in.
Piston Stroke 73 mm
2.87 in.
Number of valves per cylinder 2
Engine aspiration Naturally aspirated engine
Valvetrain SOHC
Engine oil capacity 3 l
3.17 US qt | 2.64 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 4 l
4.23 US qt | 3.52 UK qt

Space, Volume and weights
Kerb Weight 630-660 kg
1388.91 – 1455.05 lbs.
Dimensions
Length 3485-3460 mm
137.2 – 136.22 in.
Width 1510 mm
59.45 in.
Height 1345-1360 mm
52.95 – 53.54 in.
Wheelbase 2300 mm
90.55 in.
Front track 1300 mm
51.18 in.
Rear (Back) track 1280 mm
50.39 in.
Ride height (ground clearance) 165-180 mm
6.5 – 7.09 in.
Minimum turning circle (turning diameter) 9.4 m
30.84 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 4 gears, manual transmission
Front suspension Wishbone
Rear suspension Independent multi-link suspension, Coil spring
Front brakes Disc
Rear brakes Disc
Steering type Steering rack and pinion
