Specifications: Daihatsu Rocky (A200) 1.0 Turbo (98 Hp) CVT 2019, 2020, 2021, 2022, 2023, 2024, 2025

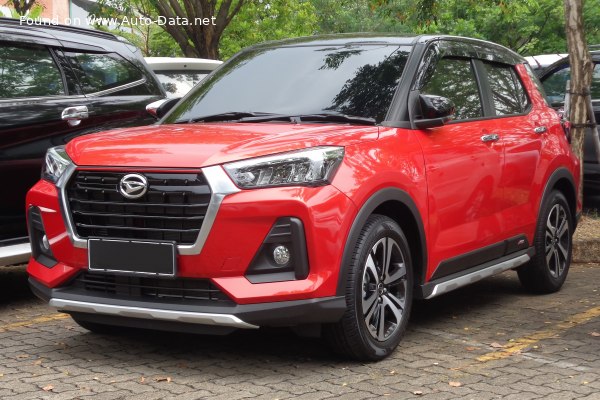

2020 Daihatsu Rocky (A200) - Photo 1

Daihatsu Rocky (A200) 1.0 Turbo (98 Hp) CVT – Full specifications
General information
Brand Daihatsu
Model Rocky
Generation Rocky (A200)
Modification (Engine) 1.0 Turbo (98 Hp) CVT
Start of production October, 2019 year
Powertrain Architecture Internal Combustion engine
Body type SUV, Crossover
Seats 5
Doors 5
Performance specs
Fuel Type Petrol (Gasoline)
Engine specs
Power 98 Hp @ 6000 rpm.
Power per litre 98.2 Hp/l
Torque 149 Nm @ 2400-4000 rpm.
109.9 lb.-ft. @ 2400-4000 rpm.
Engine layout Front, Transverse
Engine Model/Code 1KR-VET
Engine displacement 998 cm3
60.9 cu. in.
Number of cylinders 3
Engine configuration Inline
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 3.1 l
3.28 US qt | 2.73 UK qt
Engine oil specification Log in to see.Log in to see.
Engine systems Start & Stop System

Space, Volume and weights
Max. weight 1680 kg
3703.77 lbs.
Fuel tank capacity 36 l
9.51 US gal | 7.92 UK gal
Dimensions
Length 4030 mm
158.66 in.
Width 1710 mm
67.32 in.
Height 1635 mm
64.37 in.
Wheelbase 2525 mm
99.41 in.
Front track 1475 mm
58.07 in.
Rear (Back) track 1470 mm
57.87 in.
Ride height (ground clearance) 200 mm
7.87 in.
Minimum turning circle (turning diameter) 10.2 m
33.46 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox automatic transmission CVT
Front suspension Independent type McPherson
Rear suspension Torsion
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 205/60 R17
Wheel rims size 17
