Specifications: Daihatsu Rocky (A200) 1.2 (82 Hp) HEV Automatic 2021, 2022, 2023, 2024, 2025

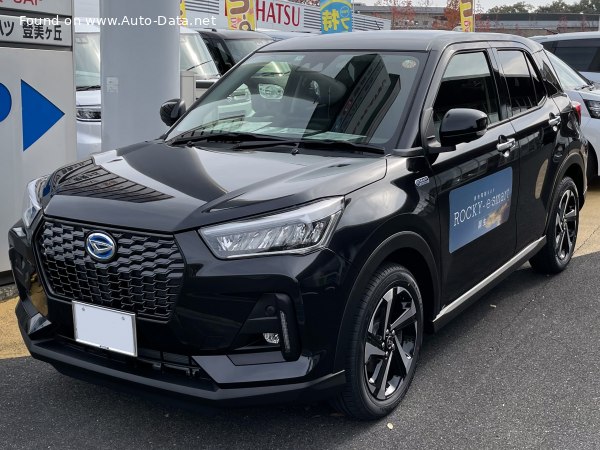

2020 Daihatsu Rocky (A200) - Photo 1

Daihatsu Rocky (A200) 1.2 (82 Hp) HEV Automatic – Full specifications
General information
Brand Daihatsu
Model Rocky
Generation Rocky (A200)
Modification (Engine) 1.2 (82 Hp) HEV Automatic
Start of production November, 2021 year
Powertrain Architecture FHEV (Full Hybrid Electric Vehicle)
Body type SUV, Crossover
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban (WLTC) 3.4 l/100 km
69.18 US mpg
83.08 UK mpg
29.41 km/l
Fuel consumption (economy) – extra urban (WLTC) 3.8 l/100 km
61.9 US mpg
74.34 UK mpg
26.32 km/l
Fuel consumption (economy) – combined (WLTC) 3.6 l/100 km
65.34 US mpg
78.47 UK mpg
27.78 km/l
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 12.9 kg/Hp, 77.4 Hp/tonne
Weight-to-torque ratio 10.1 kg/Nm, 99.1 Nm/tonne
Electric cars and hybrids specs
Battery technology Lithium-ion (Li-Ion)
Battery location Below the floor, under the rear seats
Electric motor 1
Electric motor power 106 Hp @ 4372-6329 rpm.
Electric motor Torque 170 Nm @ 0-4372 rpm.

125.39 lb.-ft. @ 0-4372 rpm.
Electric motor model/code E1A
Electric motor location Integrated into the transmission
Internal combustion engine specs
Power 82 Hp @ 5600 rpm.
Power per litre 68.6 Hp/l
Torque 105 Nm @ 3200-5200 rpm.
77.44 lb.-ft. @ 3200-5200 rpm.
Engine layout Front, Transverse
Engine Model/Code WA-VEX
Engine displacement 1196 cm3
72.98 cu. in.
Number of cylinders 3
Engine configuration Inline
Cylinder Bore 73.5 mm
2.89 in.
Piston Stroke 94 mm
3.7 in.
Compression ratio 12.8:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, VVT
Engine systems Start & Stop System

Space, Volume and weights
Kerb Weight 1060-1070 kg
2336.9 – 2358.95 lbs.
Fuel tank capacity 33 l
8.72 US gal | 7.26 UK gal
Dimensions
Length 3995 mm
157.28 in.
Width 1695 mm
66.73 in.
Height 1620 mm
63.78 in.
Wheelbase 2525 mm
99.41 in.
Front track 1475 mm
58.07 in.
Rear (Back) track 1470 mm
57.87 in.
Ride height (ground clearance) 185 mm
7.28 in.
Minimum turning circle (turning diameter) 9.8-10 m
32.15 – 32.81 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work in full electric or mixed mode.
Drive wheel Front wheel drive
Front suspension Independent type McPherson
Rear suspension Torsion
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 195/65 R16; 195/60 R17
Wheel rims size 16; 17
