Specifications: Daihatsu Rocky (A200) 1.2 (87 Hp) CVT 2019, 2020, 2021, 2022, 2023, 2024, 2025

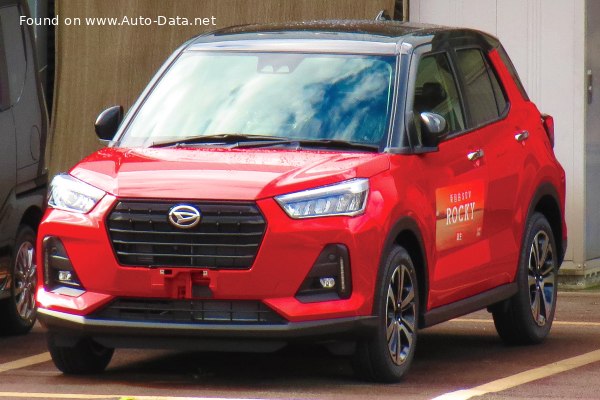

2020 Daihatsu Rocky (A200) - Photo 1

Daihatsu Rocky (A200) 1.2 (87 Hp) CVT – Full specifications
General information
Brand Daihatsu
Model Rocky
Generation Rocky (A200)
Modification (Engine) 1.2 (87 Hp) CVT
Start of production November, 2019 year
Powertrain Architecture Internal Combustion engine
Body type SUV, Crossover
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban (WLTC) 6.3 l/100 km
37.34 US mpg
44.84 UK mpg
15.87 km/l
Fuel consumption (economy) – extra urban (WLTC) 4.4 l/100 km
53.46 US mpg
64.2 UK mpg
22.73 km/l
Fuel consumption (economy) – combined (WLTC) 4.8 l/100 km
49 US mpg
58.85 UK mpg
20.83 km/l
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 11.1 kg/Hp, 89.7 Hp/tonne
Weight-to-torque ratio 8.6 kg/Nm, 116.5 Nm/tonne
Engine specs
Power 87 Hp @ 6000 rpm.
Power per litre 72.7 Hp/l
Torque 113 Nm @ 4500 rpm.
83.34 lb.-ft. @ 4500 rpm.
Engine layout Front, Transverse
Engine Model/Code WA-VE
Engine displacement 1196 cm3
72.98 cu. in.
Number of cylinders 3
Engine configuration Inline
Cylinder Bore 73.5 mm
2.89 in.
Piston Stroke 94 mm
3.7 in.
Compression ratio 12.8:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, VVT
Engine systems Start & Stop System

Space, Volume and weights
Kerb Weight 970-980 kg
2138.48 – 2160.53 lbs.
Fuel tank capacity 36 l
9.51 US gal | 7.92 UK gal
Dimensions
Length 3995 mm
157.28 in.
Width 1695 mm
66.73 in.
Height 1620 mm
63.78 in.
Wheelbase 2525 mm
99.41 in.
Front track 1475 mm
58.07 in.
Rear (Back) track 1470 mm
57.87 in.
Ride height (ground clearance) 185 mm
7.28 in.
Minimum turning circle (turning diameter) 9.8-10 m
32.15 – 32.81 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox automatic transmission CVT
Front suspension Independent type McPherson
Rear suspension Torsion
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 195/65 R16; 195/60 R17
Wheel rims size 16; 17
