Specifications: Daihatsu Terios III (F800) 1.5 (104 Hp) 2018, 2019, 2020, 2021, 2022, 2023

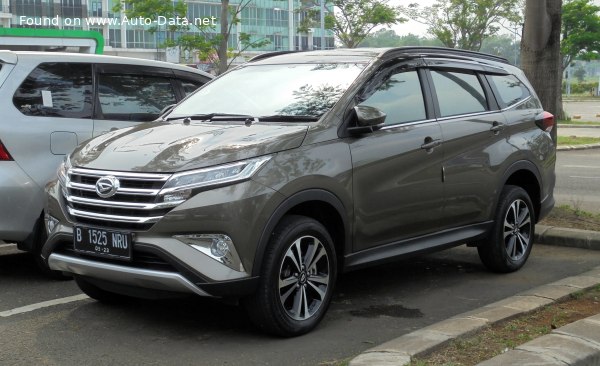

2018 Daihatsu Terios III (F800) - Photo 1

Daihatsu Terios III (F800) 1.5 (104 Hp) – Full specifications
General information
Brand Daihatsu
Model Terios
Generation Terios III (F800)
Modification (Engine) 1.5 (104 Hp)
Start of production 2018 year
End of production 2023 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 7
Doors 5
Performance specs
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 12 kg/Hp, 83.5 Hp/tonne
Weight-to-torque ratio 9.2 kg/Nm, 109.2 Nm/tonne
Engine specs
Power 104 Hp @ 6000 rpm.
Power per litre 69.5 Hp/l
Torque 136 Nm @ 4200 rpm.
100.31 lb.-ft. @ 4200 rpm.
Engine layout Front, Longitudinal
Engine Model/Code 2NR-VE
Engine displacement 1496 cm3
91.29 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 72.5 mm
2.85 in.
Piston Stroke 90.6 mm
3.57 in.
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, D-VVT-i
Engine oil capacity 3.5 l
3.7 US qt | 3.08 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6 l
6.34 US qt | 5.28 UK qt

Space, Volume and weights
Kerb Weight 1245-1260 kg
2744.76 – 2777.82 lbs.
Max. weight 1870 kg
4122.64 lbs.
Max load 610-625 kg
1344.82 – 1377.89 lbs.
Fuel tank capacity 45 l
11.89 US gal | 9.9 UK gal
Dimensions
Length 4435 mm
174.61 in.
Width 1695 mm
66.73 in.
Height 1705 mm
67.13 in.
Wheelbase 2685 mm
105.71 in.
Front track 1445 mm
56.89 in.
Rear (Back) track 1460 mm
57.48 in.
Ride height (ground clearance) 220 mm
8.66 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 215/65 R16; 215/60 R17
Wheel rims size 16; 17
