Specifications: Daihatsu Xenia II (F650) 1.0 (63 Hp) 2011, 2012, 2013, 2014, 2015

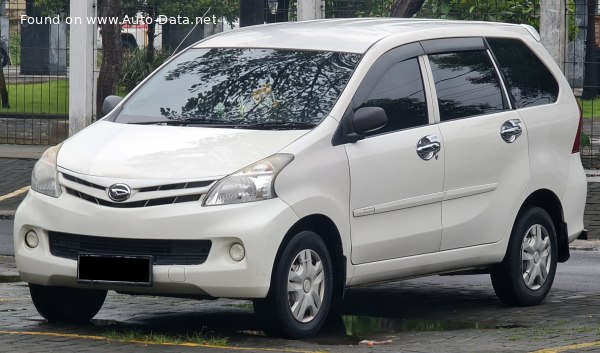

2012 Daihatsu Xenia II (F650) - Photo 1

Daihatsu Xenia II (F650) 1.0 (63 Hp) – Full specifications
General information
Brand Daihatsu
Model Xenia
Generation Xenia II (F650)
Modification (Engine) 1.0 (63 Hp)
Start of production November, 2011 year
End of production 2015 year
Powertrain Architecture Internal Combustion engine
Body type MPV
Seats 7
Doors 5
Performance specs
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 16 kg/Hp, 62.7 Hp/tonne
Weight-to-torque ratio 11.2 kg/Nm, 89.6 Nm/tonne
Engine specs
Power 63 Hp @ 5600 rpm.
Power per litre 63.7 Hp/l
Torque 90 Nm @ 3600 rpm.
66.38 lb.-ft. @ 3600 rpm.
Engine layout Front, Longitudinal
Engine Model/Code EJ-VE
Engine displacement 989 cm3
60.35 cu. in.
Number of cylinders 3
Engine configuration Inline
Cylinder Bore 72 mm
2.83 in.
Piston Stroke 81 mm
3.19 in.
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, VVT-i

Space, Volume and weights
Kerb Weight 1005-1030 kg
2215.65 – 2270.76 lbs.
Max. weight 1540 kg
3395.12 lbs.
Max load 510-535 kg
1124.36 – 1179.47 lbs.
Fuel tank capacity 45 l
11.89 US gal | 9.9 UK gal
Dimensions
Length 4140 mm
162.99 in.
Width 1660 mm
65.35 in.
Height 1685 mm
66.34 in.
Wheelbase 2655 mm
104.53 in.
Front track 1425 mm
56.1 in.
Rear (Back) track 1435 mm
56.5 in.
Ride height (ground clearance) 170-190 mm
6.69 – 7.48 in.
Minimum turning circle (turning diameter) 9.2 m
30.18 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent type McPherson
Rear suspension Rigid axle suspension
Front brakes Disc
Rear brakes Drum
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 165/80 R13
Wheel rims size 4.5J x 13
