Specifications: Dodge Caliber 2.0 16V CRD (140 Hp) 2006, 2007, 2008, 2009, 2010

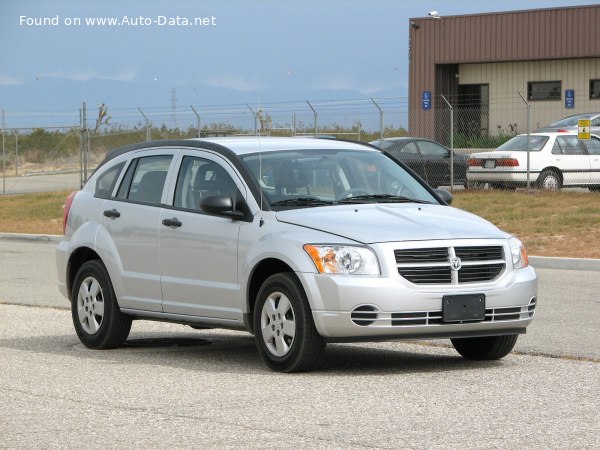

2007 Dodge Caliber - Photo 1

Dodge Caliber 2.0 16V CRD (140 Hp) – Full specifications
General information
Brand Dodge
Model Caliber
Generation Caliber
Modification (Engine) 2.0 16V CRD (140 Hp)
Start of production 2006 year
End of production 2010 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 7.9 l/100 km
29.77 US mpg
35.76 UK mpg
12.66 km/l
Fuel consumption (economy) – extra urban 5 l/100 km
47.04 US mpg
56.5 UK mpg
20 km/l
Fuel consumption (economy) – combined 6.1 l/100 km
38.56 US mpg
46.31 UK mpg
16.39 km/l
CO2 emissions 163 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 9.3 sec
Acceleration 0 – 62 mph 9.3 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 8.8 sec
Maximum speed 196 km/h
121.79 mph
Weight-to-power ratio 10.2 kg/Hp, 98.2 Hp/tonne
Weight-to-torque ratio 4.6 kg/Nm, 217.5 Nm/tonne
Engine specs
Power 140 Hp @ 4000 rpm.
Power per litre 71.1 Hp/l
Torque 310 Nm @ 1750-2500 rpm.
228.64 lb.-ft. @ 1750-2500 rpm.
Engine layout Front, Transverse
Engine Model/Code ECD, ECE
Engine displacement 1968 cm3
120.09 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 81 mm
3.19 in.
Piston Stroke 95.5 mm
3.76 in.
Compression ratio 18:1
Number of valves per cylinder 4
Fuel injection system Pump-nozzle (Unit Injector)
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 4 l
4.23 US qt | 3.52 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8 l
8.45 US qt | 7.04 UK qt
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1425 kg
3141.59 lbs.
Max. weight 2000 kg
4409.25 lbs.
Max load 575 kg
1267.66 lbs.
Trunk (boot) space – minimum 352 l
12.43 cu. ft.
Trunk (boot) space – maximum 1013 l
35.77 cu. ft.
Fuel tank capacity 51 l
13.47 US gal | 11.22 UK gal
Permitted trailer load with brakes (12%) 1120 kg
2469.18 lbs.
Permitted trailer load without brakes 450 kg
992.08 lbs.
Permitted towbar download 80 kg
176.37 lbs.
Dimensions
Length 4415 mm
173.82 in.
Width 1800 mm
70.87 in.
Height 1535 mm
60.43 in.
Wheelbase 2635 mm
103.74 in.
Front track 1520 mm
59.84 in.
Rear (Back) track 1520 mm
59.84 in.
Minimum turning circle (turning diameter) 10.8 m
35.43 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 215/60 R17
Wheel rims size 6.5J x 17
