Specifications: Dodge Caravan II LWB 3.8 V6 (164 Hp) Automatic 1991, 1992, 1993, 1994, 1995

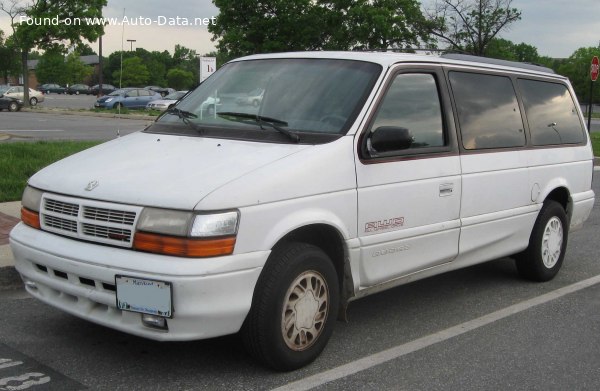

1991 Dodge Caravan II LWB - Photo 1

Dodge Caravan II LWB 3.8 V6 (164 Hp) Automatic – Full specifications
General information
Brand Dodge
Model Caravan
Generation Caravan II LWB
Modification (Engine) 3.8 V6 (164 Hp) Automatic
Start of production 1991 year
End of production 1995 year
Powertrain Architecture Internal Combustion engine
Body type Minivan
Seats 7
Doors 4
Performance specs
Fuel consumption (economy) – urban 13.8 l/100 km
17.04 US mpg
20.47 UK mpg
7.25 km/l
Fuel consumption (economy) – extra urban 10.2 l/100 km
23.06 US mpg
27.69 UK mpg
9.8 km/l
Fuel consumption (economy) – combined 12.4 l/100 km
18.97 US mpg
22.78 UK mpg
8.06 km/l
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 9.9 kg/Hp, 101.3 Hp/tonne
Weight-to-torque ratio 5.6 kg/Nm, 177.9 Nm/tonne
Engine specs
Power 164 Hp @ 4400 rpm.
Power per litre 43.4 Hp/l
Torque 288 Nm @ 3600 rpm.
212.42 lb.-ft. @ 3600 rpm.
Engine layout Front, Transverse
Engine Model/Code EGH
Engine displacement 3778 cm3
230.55 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 96 mm
3.78 in.
Piston Stroke 87 mm
3.43 in.
Compression ratio 9:1
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain OHV
Engine oil capacity 4.3 l
4.54 US qt | 3.78 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 9.5 l
10.04 US qt | 8.36 UK qt

Space, Volume and weights
Kerb Weight 1619 kg
3569.28 lbs.
Trunk (boot) space – minimum 1020 l
36.02 cu. ft.
Fuel tank capacity 76 l
20.08 US gal | 16.72 UK gal
Dimensions
Length 4897 mm
192.8 in.
Width 1829 mm
72.01 in.
Height 1685 mm
66.34 in.
Wheelbase 3030 mm
119.29 in.
Front track 1521 mm
59.88 in.
Rear (Back) track 1578 mm
62.13 in.
Ride height (ground clearance) 130 mm
5.12 in.
Drag coefficient (Cd) 0.39
Minimum turning circle (turning diameter) 13.1 m
42.98 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 4 gears, automatic transmission
Front suspension Wishbone
Rear suspension Rigid axle suspension
Front brakes Ventilated discs
Rear brakes Drum
Power steering Hydraulic Steering
Tires size 205/70 R15
Wheel rims size 15
