Specifications: Dodge Caravan V 4.0 V6 (257 Hp) Automatic 2008, 2009, 2010

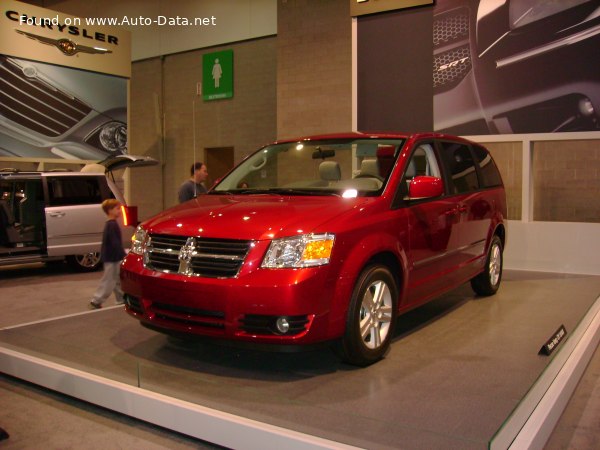

2008 Dodge Caravan V - Photo 1

Dodge Caravan V 4.0 V6 (257 Hp) Automatic – Full specifications
General information
Brand Dodge
Model Caravan
Generation Caravan V
Modification (Engine) 4.0 V6 (257 Hp) Automatic
Start of production 2008 year
End of production 2010 year
Powertrain Architecture Internal Combustion engine
Body type Minivan
Seats 7
Doors 5
Performance specs
Fuel consumption (economy) – urban 14.7 l/100 km
16 US mpg
19.22 UK mpg
6.8 km/l
Fuel consumption (economy) – extra urban 10.2 l/100 km
23.06 US mpg
27.69 UK mpg
9.8 km/l
Fuel consumption (economy) – combined 12.4 l/100 km
18.97 US mpg
22.78 UK mpg
8.06 km/l
Fuel Type Petrol (Gasoline)
Maximum speed 179 km/h
111.23 mph
Emission standard Euro 4
Weight-to-power ratio 8 kg/Hp, 125.5 Hp/tonne
Weight-to-torque ratio 5.8 kg/Nm, 171 Nm/tonne
Engine specs
Power 257 Hp @ 6000 rpm.
Power per litre 65 Hp/l
Torque 350 Nm @ 4200 rpm.
258.15 lb.-ft. @ 4200 rpm.
Maximum engine speed 6000 rpm.
Engine layout Front, Transverse
Engine displacement 3952 cm3
241.17 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 96 mm
3.78 in.
Piston Stroke 91 mm
3.58 in.
Compression ratio 10.3:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain SOHC
Engine oil capacity 5.2 l
5.49 US qt | 4.58 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 12.6 l
13.31 US qt | 11.09 UK qt

Space, Volume and weights
Kerb Weight 2047 kg
4512.86 lbs.
Trunk (boot) space – minimum 2350 l
82.99 cu. ft.
Trunk (boot) space – maximum 3981 l
140.59 cu. ft.
Fuel tank capacity 76 l
20.08 US gal | 16.72 UK gal
Permitted trailer load with brakes (12%) 1633 kg
3600.15 lbs.
Dimensions
Length 5144 mm
202.52 in.
Width 2000 mm
78.74 in.
Height 1750 mm
68.9 in.
Wheelbase 3078 mm
121.18 in.
Front track 1663 mm
65.47 in.
Rear (Back) track 1645 mm
64.76 in.
Ride height (ground clearance) 155 mm
6.1 in.
Drag coefficient (Cd) 0.33
Minimum turning circle (turning diameter) 11.92 m
39.11 ft.
Approach angle 14.3°
Departure angle 18.7°
Ramp-over (brakeover) angle 13.9°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Tires size 225/65 R16
Wheel rims size 16
