Specifications: Dodge Caravan V (facelift 2011) 3.6 V6 (287 Hp) Automatic 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020

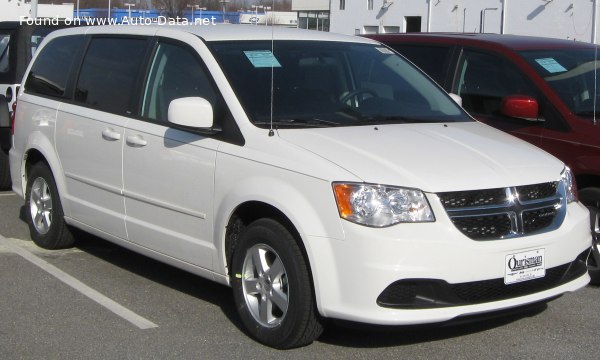

2011 Dodge Caravan V (facelift 2011) - Photo 1

Dodge Caravan V (facelift 2011) 3.6 V6 (287 Hp) Automatic – Full specifications
General information
Brand Dodge
Model Caravan
Generation Caravan V (facelift 2011)
Modification (Engine) 3.6 V6 (287 Hp) Automatic
Start of production 2011 year
End of production 2020 year
Powertrain Architecture Internal Combustion engine
Body type Minivan
Seats 7
Doors 5
Performance specs
Fuel consumption (economy) – urban 13.8 l/100 km
17.04 US mpg
20.47 UK mpg
7.25 km/l
Fuel consumption (economy) – extra urban 9.4 l/100 km
25.02 US mpg
30.05 UK mpg
10.64 km/l
Fuel consumption (economy) – combined 11.8 l/100 km
19.93 US mpg
23.94 UK mpg
8.47 km/l
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 7.1 kg/Hp, 140 Hp/tonne
Weight-to-torque ratio 5.8 kg/Nm, 172.2 Nm/tonne
Engine specs
Power 287 Hp @ 6400 rpm.
Power per litre 79.6 Hp/l
Torque 353 Nm @ 4400 rpm.
260.36 lb.-ft. @ 4400 rpm.
Maximum engine speed 6800 rpm.
Engine layout Front, Transverse
Engine displacement 3604 cm3
219.93 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 96 mm
3.78 in.
Piston Stroke 83 mm
3.27 in.
Compression ratio 10.2:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC-VVT
Engine oil capacity 5.6 l
5.92 US qt | 4.93 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 12.6 l
13.31 US qt | 11.09 UK qt

Space, Volume and weights
Kerb Weight 2050 kg
4519.48 lbs.
Max. weight 2744 kg
6049.48 lbs.
Max load 694 kg
1530.01 lbs.
Trunk (boot) space – minimum 2359 l
83.31 cu. ft.
Trunk (boot) space – maximum 4072 l
143.8 cu. ft.
Fuel tank capacity 76 l
20.08 US gal | 16.72 UK gal
Permitted trailer load with brakes (12%) 1633 kg
3600.15 lbs.
Dimensions
Length 5151 mm
202.8 in.
Width 1998 mm
78.66 in.
Width including mirrors 2247 mm
88.46 in.
Height 1725 mm
67.91 in.
Wheelbase 3078 mm
121.18 in.
Front track 1665 mm
65.55 in.
Rear (Back) track 1647 mm
64.84 in.
Ride height (ground clearance) 142 mm
5.59 in.
Drag coefficient (Cd) 0.33
Minimum turning circle (turning diameter) 11.92 m
39.11 ft.
Approach angle 13.4°
Departure angle 17.5°
Ramp-over (brakeover) angle 13.6°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Tires size 225/65 R17
Wheel rims size 17
