Specifications: Dodge Charger VII (LD) SXT 3.6 (296 Hp) Automatic 2012, 2013, 2014

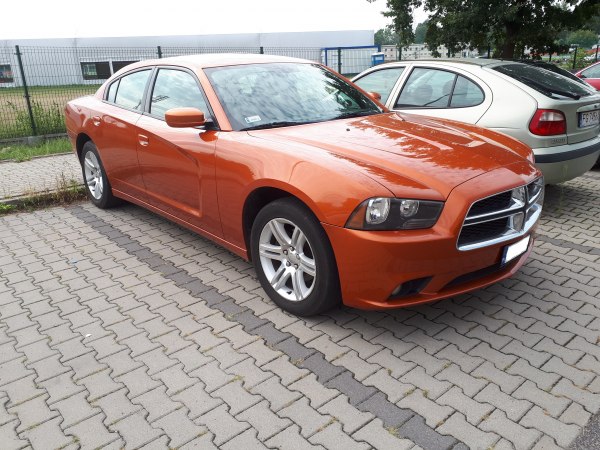

2011 Dodge Charger VII (LD) - Photo 1

Dodge Charger VII (LD) SXT 3.6 (296 Hp) Automatic – Full specifications
General information
Brand Dodge
Model Charger
Generation Charger VII (LD)
Modification (Engine) SXT 3.6 (296 Hp) Automatic
Start of production 2012 year
End of production 2014 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 12.4 l/100 km
18.97 US mpg
22.78 UK mpg
8.06 km/l
Fuel consumption (economy) – extra urban 7.6 l/100 km
30.95 US mpg
37.17 UK mpg
13.16 km/l
Fuel consumption (economy) – combined 10.2 l/100 km
23.06 US mpg
27.69 UK mpg
9.8 km/l
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 6.1 kg/Hp, 163.3 Hp/tonne
Weight-to-torque ratio 5.1 kg/Nm, 194.7 Nm/tonne
Engine specs
Power 296 Hp @ 6350 rpm.
Power per litre 82.1 Hp/l
Torque 353 Nm @ 4800 rpm.
260.36 lb.-ft. @ 4800 rpm.
Engine layout Front, Longitudinal
Engine Model/Code ERB
Engine displacement 3604 cm3
219.93 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 96 mm
3.78 in.
Piston Stroke 83 mm
3.27 in.
Compression ratio 10.2:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 5.6 l
5.92 US qt | 4.93 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 9.5 l
10.04 US qt | 8.36 UK qt

Space, Volume and weights
Kerb Weight 1813 kg
3996.98 lbs.
Trunk (boot) space – minimum 437 l
15.43 cu. ft.
Fuel tank capacity 72 l
19.02 US gal | 15.84 UK gal
Permitted trailer load without brakes 454 kg
1000.9 lbs.
Dimensions
Length 5077 mm
199.88 in.
Width 1905 mm
75 in.
Width including mirrors 2098 mm
82.6 in.
Height 1482 mm
58.35 in.
Wheelbase 3052 mm
120.16 in.
Front track 1611 mm
63.43 in.
Rear (Back) track 1620 mm
63.78 in.
Ride height (ground clearance) 126.5 mm
4.98 in.
Minimum turning circle (turning diameter) 11.5 m
37.73 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 8 gears, automatic transmission
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 215/65 R17
Wheel rims size 17
