Specifications: Dodge Journey 2.0 CRD (140 Hp) 2008, 2009, 2010

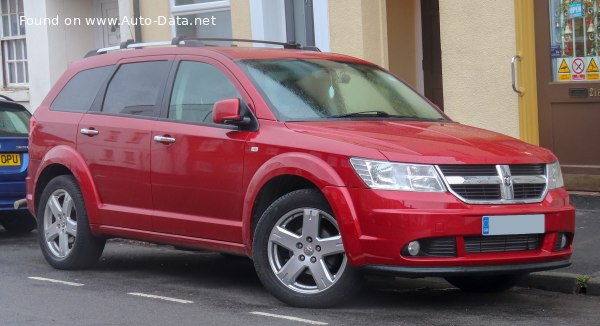

2009 Dodge Journey - Photo 1

Dodge Journey 2.0 CRD (140 Hp) – Full specifications
General information
Brand Dodge
Model Journey
Generation Journey
Modification (Engine) 2.0 CRD (140 Hp)
Start of production 2008 year
End of production 2010 year
Powertrain Architecture Internal Combustion engine
Body type CUV
Seats 5-7
Doors 5
Performance specs
Fuel consumption (economy) – urban 8.4 l/100 km
28 US mpg
33.63 UK mpg
11.9 km/l
Fuel consumption (economy) – extra urban 5.4 l/100 km
43.56 US mpg
52.31 UK mpg
18.52 km/l
Fuel consumption (economy) – combined 6.5 l/100 km
36.19 US mpg
43.46 UK mpg
15.38 km/l
CO2 emissions 172 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 11.6 sec
Acceleration 0 – 62 mph 11.6 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 11 sec
Maximum speed 188 km/h
116.82 mph
Weight-to-power ratio 13 kg/Hp, 76.9 Hp/tonne
Weight-to-torque ratio 5.9 kg/Nm, 170.3 Nm/tonne
Engine specs
Power 140 Hp @ 4000 rpm.
Power per litre 71.1 Hp/l
Torque 310 Nm @ 1750-2500 rpm.
228.64 lb.-ft. @ 1750-2500 rpm.
Engine layout Front, Transverse
Engine Model/Code BWD, ECE
Engine displacement 1968 cm3
120.09 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 81 mm
3.19 in.
Piston Stroke 95.5 mm
3.76 in.
Compression ratio 18:1
Number of valves per cylinder 4
Fuel injection system Pump-nozzle (Unit Injector)
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 4 l
4.23 US qt | 3.52 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8 l
8.45 US qt | 7.04 UK qt

Space, Volume and weights
Kerb Weight 1820 kg
4012.41 lbs.
Max. weight 2480 kg
5467.46 lbs.
Max load 660 kg
1455.05 lbs.
Trunk (boot) space – minimum 167 l
5.9 cu. ft.
Trunk (boot) space – maximum 1562 l
55.16 cu. ft.
Fuel tank capacity 77 l
20.34 US gal | 16.94 UK gal
Permitted trailer load with brakes (12%) 1360 kg
2998.29 lbs.
Permitted trailer load without brakes 450 kg
992.08 lbs.
Permitted towbar download 68 kg
149.91 lbs.
Dimensions
Length 4888 mm
192.44 in.
Width 1878 mm
73.94 in.
Height 1691 mm
66.57 in.
Wheelbase 2890 mm
113.78 in.
Front track 1571 mm
61.85 in.
Rear (Back) track 1582 mm
62.28 in.
Minimum turning circle (turning diameter) 11.7 m
38.39 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 225/65 R16; 225/65 R17
Wheel rims size 6.5J x 16; 6.5J x 17
