Specifications: Dodge Magnum 3.5 i V6 24V (254 Hp) 2003, 2004, 2005, 2006, 2007, 2008

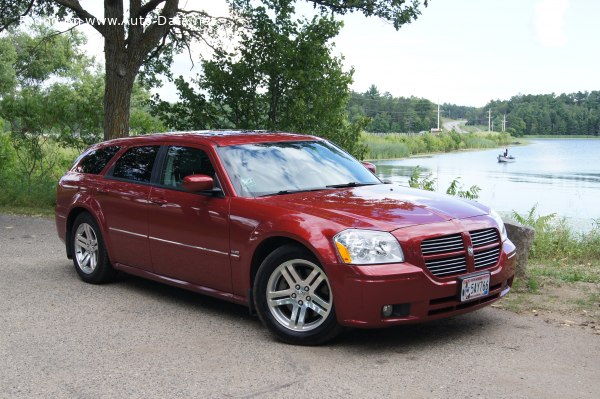

2005 Dodge Magnum - Photo 1

Dodge Magnum 3.5 i V6 24V (254 Hp) – Full specifications
General information
Brand Dodge
Model Magnum
Generation Magnum
Modification (Engine) 3.5 i V6 24V (254 Hp)
Start of production 2003 year
End of production 2008 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 13.8 l/100 km
17.04 US mpg
20.47 UK mpg
7.25 km/l
Fuel consumption (economy) – extra urban 9.4 l/100 km
25.02 US mpg
30.05 UK mpg
10.64 km/l
Fuel consumption (economy) – combined 11.8 l/100 km
19.93 US mpg
23.94 UK mpg
8.47 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 8.5 sec
Acceleration 0 – 62 mph 8.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 8.1 sec
Maximum speed 210 km/h
130.49 mph
Weight-to-power ratio 7 kg/Hp, 143.3 Hp/tonne
Weight-to-torque ratio 5.2 kg/Nm, 191.3 Nm/tonne
Engine specs
Power 254 Hp @ 6400 rpm.
Power per litre 72.2 Hp/l
Torque 339 Nm @ 4000 rpm.
250.03 lb.-ft. @ 4000 rpm.
Engine layout Front, Longitudinal
Engine Model/Code EGG
Engine displacement 3518 cm3
214.68 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 96 mm
3.78 in.
Piston Stroke 81 mm
3.19 in.
Compression ratio 9.9:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Engine oil capacity 5.7 l
6.02 US qt | 5.02 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 10 l
10.57 US qt | 8.8 UK qt

Space, Volume and weights
Kerb Weight 1772 kg
3906.59 lbs.
Trunk (boot) space – minimum 770 l
27.19 cu. ft.
Fuel tank capacity 68 l
17.96 US gal | 14.96 UK gal
Dimensions
Length 5020 mm
197.64 in.
Width 1880 mm
74.02 in.
Height 1505 mm
59.25 in.
Wheelbase 3050 mm
120.08 in.
Front track 1600 mm
62.99 in.
Rear (Back) track 1600 mm
62.99 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 4 gears, automatic transmission
Front suspension Double wishbone
Rear suspension Wishbone
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 225/60 R18
