Specifications: Dodge Ram 3500 Regular Cab Long Bed (BRBE) DRW 5.9 V8 (230 Hp) Automatic 1994, 1995, 1996, 1997, 1998

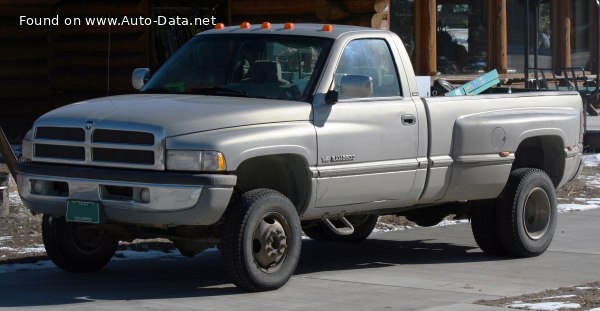

1994 Dodge Ram 3500 Regular Cab Long Bed (BR/BE) - Photo 1

Dodge Ram 3500 Regular Cab Long Bed (BR/BE) DRW 5.9 V8 (230 Hp) Automatic – Full specifications
General information
Brand Dodge
Model RAM
Generation Ram 3500 Regular Cab Long Bed (BR/BE)
Modification (Engine) DRW 5.9 V8 (230 Hp) Automatic
Start of production 1994 year
End of production 1998 year
Powertrain Architecture Internal Combustion engine
Body type Pick-up
Seats 3
Doors 2
Performance specs
Fuel Type Petrol (Gasoline)
Engine specs
Power 230 Hp @ 4000 rpm.
Power per litre 39 Hp/l
Torque 447 Nm @ 2800 rpm.
329.69 lb.-ft. @ 2800 rpm.
Engine layout Front, Longitudinal
Engine Model/Code 360 Magnum
Engine displacement 5899 cm3
359.98 cu. in.
Number of cylinders 8
Engine configuration V-engine
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Engine oil capacity 4.7 l
4.97 US qt | 4.14 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 19 l
20.08 US qt | 16.72 UK qt

Space, Volume and weights
Max. weight 4763 kg
10500.62 lbs.
Permitted trailer load with brakes (12%) 4354 kg
9598.93 lbs.
Dimensions
Length 5692 mm
224.09 in.
Width including mirrors 2383 mm
93.82 in.
Height 1854 mm
72.99 in.
Wheelbase 3429 mm
135 in.
Approach angle 26.1°
Departure angle 24.7°
Ramp-over (brakeover) angle 19.4°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 4 gears, automatic transmission
Front suspension Independent coil spring
Rear suspension Rigid axle suspension, Leaf spring
Front brakes Disc
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 215/85 R16
Wheel rims size 6J x 16
