Specifications: Eagle Vision 3.5 i V6 24V TSi (218 Hp) 1992, 1993, 1994, 1995, 1996, 1997, 1998

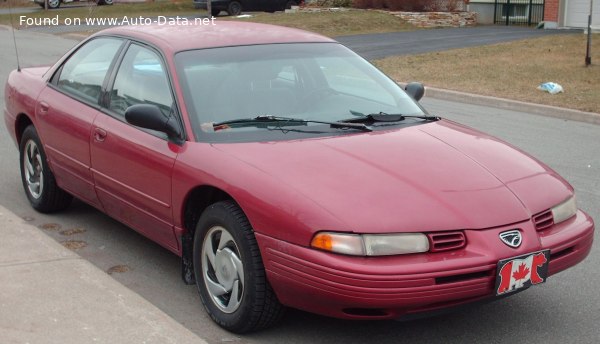

1993 Eagle Vision - Photo 1

Eagle Vision 3.5 i V6 24V TSi (218 Hp) – Full specifications
General information
Brand Eagle
Model Vision
Generation Vision
Modification (Engine) 3.5 i V6 24V TSi (218 Hp)
Start of production 1992 year
End of production 1998 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – combined 11.3 l/100 km
20.8 US mpg
25 UK mpg
8.8 km/l
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 7.3 kg/Hp, 137.8 Hp/tonne
Weight-to-torque ratio 5.3 kg/Nm, 189.6 Nm/tonne
Engine specs
Power 218 Hp @ 5800 rpm.
Power per litre 62 Hp/l
Torque 300 Nm @ 2800 rpm.
221.27 lb.-ft. @ 2800 rpm.
Engine layout Front, Longitudinal
Engine displacement 3518 cm3
214.68 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 96 mm
3.78 in.
Piston Stroke 81 mm
3.19 in.
Compression ratio 10.4:1
Number of valves per cylinder 4
Fuel injection system Single-point injection
Engine aspiration Turbocharging and Supercharger, Intercooler
Valvetrain OHC

Space, Volume and weights
Kerb Weight 1582 kg
3487.71 lbs.
Trunk (boot) space – minimum 473 l
16.7 cu. ft.
Fuel tank capacity 68 l
17.96 US gal | 14.96 UK gal
Dimensions
Length 5120 mm
201.57 in.
Width 1890 mm
74.41 in.
Height 1417 mm
55.79 in.
Wheelbase 2870 mm
112.99 in.
Front track 1574 mm
61.97 in.
Rear (Back) track 1574 mm
61.97 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 4 gears, automatic transmission
Front suspension Spring Strut
Rear suspension Coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Power steering Hydraulic Steering
Tires size 225/60 R16 V
