Specifications: Ferrari 296 GTB 3.0 V6 (830 Hp) Plug-in Hybrid F1 DCT 2022, 2023, 2024, 2025

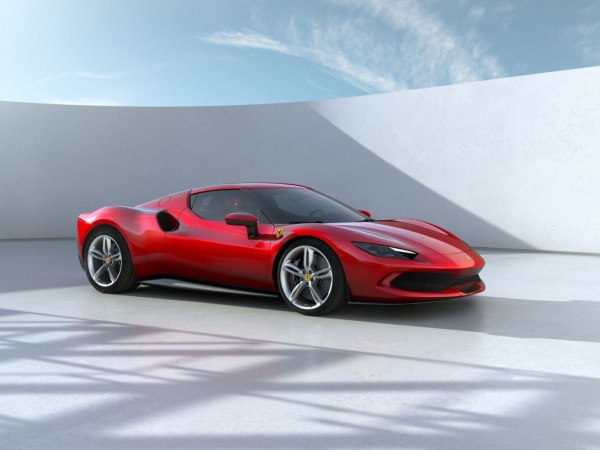

2021 Ferrari 296 GTB - Photo 1

Ferrari 296 GTB 3.0 V6 (830 Hp) Plug-in Hybrid F1 DCT – Full specifications
General information
Brand Ferrari
Model 296
Generation 296 GTB
Modification (Engine) 3.0 V6 (830 Hp) Plug-in Hybrid F1 DCT
Start of production 2022 year
Powertrain Architecture PHEV (Plug-in Hybrid Electric Vehicle)
Body type Coupe
Seats 2
Doors 2
Performance specs
Combined fuel consumption (WLTP) 6.4 l/100 km
36.8 US mpg
44.1 UK mpg
15.6 km/l
CO2 emissions (WLTP) 149 g/km
Fuel Type Petrol / electricity
Acceleration 0 – 100 km/h 2.9 sec
Acceleration 0 – 62 mph 2.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 2.8 sec
Acceleration 0 – 200 km/h 7.3 sec
Maximum speed 330 km/h
205.05 mph
200 km/h – 0 107 m
Weight-to-power ratio 1.8 kg/Hp, 564.6 Hp/tonne
Weight-to-torque ratio 2 kg/Nm, 503.4 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 7.45 kWh
All-electric range 25 km
15.53 mi
Average Energy consumption (WLTP) 14 kWh/100 km

22.53 kWh/100 mi
150 MPGe
7.1 km/kWh
4.4 mi/kWh
Electric motor 1
Electric motor power 167 Hp
Electric motor location Between the combustion engine and the transmission
System power 830 Hp
System torque 740 Nm @ 6250 rpm.
545.8 lb.-ft. @ 6250 rpm.
Internal combustion engine specs
Power 663 Hp @ 8000 rpm.
Power per litre 221.6 Hp/l
Torque 740 Nm @ 3250 rpm.
545.8 lb.-ft. @ 3250 rpm.
Maximum engine speed 8500 rpm.
Engine layout Middle, Longitudinal
Engine displacement 2992 cm3
182.58 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 88 mm
3.46 in.
Piston Stroke 82 mm
3.23 in.
Compression ratio 9.4:1
Fuel injection system Direct injection
Engine aspiration BiTurbo, Intercooler

Space, Volume and weights
Kerb Weight 1470 kg
3240.8 lbs.
Fuel tank capacity 65 l
17.17 US gal | 14.3 UK gal
Dimensions
Length 4565 mm
179.72 in.
Width 1958 mm
77.09 in.
Height 1187 mm
46.73 in.
Wheelbase 2600 mm
102.36 in.
Front track 1665 mm
65.55 in.
Rear (Back) track 1632 mm
64.25 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and electric motor drive the rear wheels of the car with the ability to work in full electric or mixed mode.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 8 gears, automatic transmission F1 DCT
Front brakes Ventilated discs, 398×38 mm
Rear brakes Ventilated discs, 360×32 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size Front wheel tires: 245/35 R20
Rear wheel tires: 305/35 R20
Wheel rims size Front wheel rims: 9J x 20
Rear wheel rims: 11J x 20
