Specifications: Ferrari 330 GT 2+2 (Serie 2) 4.0 V12 (300 Hp) 1964, 1965, 1966, 1967

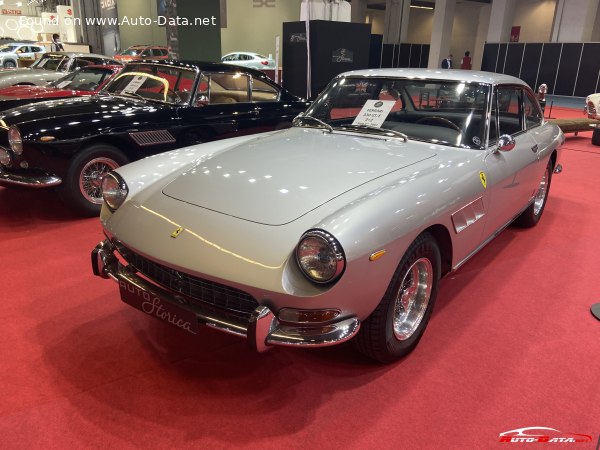

1965 Ferrari 330 GT 2+2 (Serie 2) - Photo 1

Ferrari 330 GT 2+2 (Serie 2) 4.0 V12 (300 Hp) – Full specifications
General information
Brand Ferrari
Model 330
Generation 330 GT 2+2 (Serie 2)
Modification (Engine) 4.0 V12 (300 Hp)
Start of production 1964 year
End of production 1967 year
Powertrain Architecture Internal Combustion engine
Body type Coupe
Seats 4
Doors 2
Performance specs
Fuel consumption (economy) – combined 18-20 l/100 km
13.1 – 11.8 US mpg
15.7 – 14.1 UK mpg
5.6 – 5 km/l
Fuel Type Petrol (Gasoline)
Maximum speed 245 km/h
152.24 mph
Weight-to-power ratio 4.6 kg/Hp, 217.4 Hp/tonne
Engine specs
Power 300 Hp @ 7000 rpm.
Power per litre 75.6 Hp/l
Engine layout Front, Longitudinal
Engine displacement 3967 cm3
242.08 cu. in.
Number of cylinders 12
Engine configuration V-engine
Cylinder Bore 77 mm
3.03 in.
Piston Stroke 71 mm
2.8 in.
Compression ratio 8.8:1
Number of valves per cylinder 2
Fuel injection system Carburettor
Engine aspiration Naturally aspirated engine
Valvetrain SOHC
Engine oil capacity 10 l
10.57 US qt | 8.8 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 12.5 l
13.21 US qt | 11 UK qt

Space, Volume and weights
Kerb Weight 1380 kg
3042.38 lbs.
Fuel tank capacity 90 l
23.78 US gal | 19.8 UK gal
Dimensions
Length 4840 mm
190.55 in.
Width 1715 mm
67.52 in.
Height 1360 mm
53.54 in.
Wheelbase 2650 mm
104.33 in.
Front track 1397 mm
55 in.
Rear (Back) track 1389 mm
54.69 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Double wishbone, Transverse stabilizer
Rear suspension Rigid axle suspension, Leaf spring, Coil spring
Front brakes Disc
Rear brakes Disc
Steering type Worm-reduction unit
