Specifications: Ferrari 488 GTB 3.9 V8 (670 Hp) DCT 2015, 2016, 2017, 2018, 2019

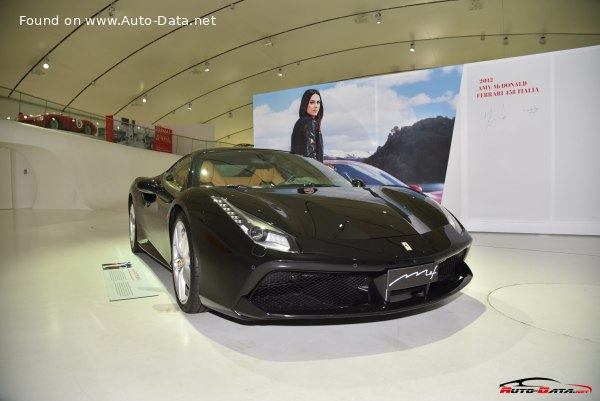

2015 Ferrari 488 GTB - Photo 1

Ferrari 488 GTB 3.9 V8 (670 Hp) DCT – Full specifications
General information
Brand Ferrari
Model 488
Generation 488 GTB
Modification (Engine) 3.9 V8 (670 Hp) DCT
Start of production 2015 year
End of production 2019 year
Powertrain Architecture Internal Combustion engine
Body type Coupe
Seats 2
Doors 2
Performance specs
Fuel consumption at Low speed (WLTP) 21.0 l/100 km
11.2 US mpg
13.5 UK mpg
4.8 km/l
Fuel consumption at Medium speed (WLTP) 11.7 l/100 km
20.1 US mpg
24.1 UK mpg
8.5 km/l
Fuel consumption at high speed (WLTP) 10.9 l/100 km
21.6 US mpg
25.9 UK mpg
9.2 km/l
Fuel consumption at very high speed (WLTP) 12.4 l/100 km
19 US mpg
22.8 UK mpg
8.1 km/l
Combined fuel consumption (WLTP) 12.9 l/100 km
18.2 US mpg
21.9 UK mpg
7.8 km/l
CO2 emissions (WLTP) 294 g/km
Fuel consumption (economy) – combined 11.4 l/100 km
20.6 US mpg
24.8 UK mpg
8.8 km/l
CO2 emissions 260 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 3.0 sec
Acceleration 0 – 62 mph 3.0 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 2.9 sec
Maximum speed 325 km/h
201.95 mph
Emission standard Euro 6
Weight-to-power ratio 2.1 kg/Hp, 471.8 Hp/tonne
Weight-to-torque ratio 1.9 kg/Nm, 535.2 Nm/tonne
Engine specs
Power 670 Hp @ 8000 rpm.
Power per litre 171.7 Hp/l
Torque 760 Nm @ 3000 rpm.
560.55 lb.-ft. @ 3000 rpm.
Engine layout Middle, Longitudinal
Engine Model/Code F154CB
Engine displacement 3902 cm3
238.11 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 86.5 mm
3.41 in.
Piston Stroke 83 mm
3.27 in.
Compression ratio 9.4:1
Fuel injection system Direct injection
Engine aspiration BiTurbo, Intercooler
Engine oil capacity 10.5 l
11.1 US qt | 9.24 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 19.7 l
20.82 US qt | 17.33 UK qt

Space, Volume and weights
Kerb Weight 1420 kg
3130.56 lbs.
Trunk (boot) space – minimum 230 l
8.12 cu. ft.
Fuel tank capacity 78 l
20.61 US gal | 17.16 UK gal
Dimensions
Length 4568 mm
179.84 in.
Width 1952 mm
76.85 in.
Height 1213 mm
47.76 in.
Wheelbase 2650 mm
104.33 in.
Front track 1679 mm
66.1 in.
Rear (Back) track 1647 mm
64.84 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 7 gears, automatic transmission F1 DCT
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 245/35 ZR 20; 305/30 ZR 20
Wheel rims size 9J x 20; 11J x 20
