Specifications: Ferrari 512 M F512 M (440 Hp) 1994, 1995, 1996

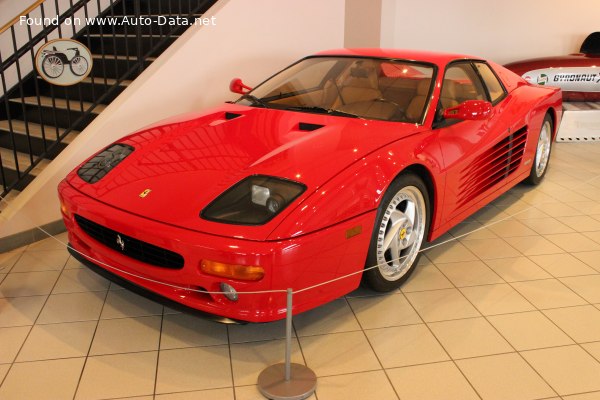

1995 Ferrari 512 M - Photo 1

Ferrari 512 M F512 M (440 Hp) – Full specifications
General information
Brand Ferrari
Model Testarossa
Generation 512 M
Modification (Engine) F512 M (440 Hp)
Start of production 1994 year
End of production 1996 year
Powertrain Architecture Internal Combustion engine
Body type Coupe
Seats 2
Doors 2
Performance specs
Fuel consumption (economy) – combined 15.6 l/100 km
15.1 US mpg
18.1 UK mpg
6.4 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 4.7 sec
Acceleration 0 – 62 mph 4.7 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 4.5 sec
Maximum speed 315 km/h
195.73 mph
Weight-to-power ratio 3.7 kg/Hp, 269.9 Hp/tonne
Weight-to-torque ratio 3.3 kg/Nm, 306.7 Nm/tonne
Engine specs
Power 440 Hp @ 6750 rpm.
Power per litre 89 Hp/l
Torque 500 Nm @ 5500 rpm.
368.78 lb.-ft. @ 5500 rpm.
Engine layout Rear, Longitudinal
Engine Model/Code F113G
Engine displacement 4943 cm3
301.64 cu. in.
Number of cylinders 12
Engine configuration V-engine
Cylinder Bore 82 mm
3.23 in.
Piston Stroke 78 mm
3.07 in.
Compression ratio 10.4:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 15.5 l
16.38 US qt | 13.64 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 20 l
21.13 US qt | 17.6 UK qt

Space, Volume and weights
Kerb Weight 1630 kg
3593.53 lbs.
Max. weight 1840 kg
4056.51 lbs.
Max load 210 kg
462.97 lbs.
Fuel tank capacity 100 l
26.42 US gal | 22 UK gal
Dimensions
Length 4480 mm
176.38 in.
Width 1976 mm
77.8 in.
Height 1135 mm
44.69 in.
Wheelbase 2550 mm
100.39 in.
Front track 1532 mm
60.31 in.
Rear (Back) track 1644 mm
64.72 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Double wishbone
Rear suspension Double wishbone
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Tires size 235/40 R18; 295/35 R18
Wheel rims size 8.5J x 18 ET36 5×108; 10.5J x 18 ET60 5×108
