Specifications: Ferrari 550 Maranello 5.5 V12 (485 Hp) 1996, 1997, 1998, 1999, 2000, 2001, 2002

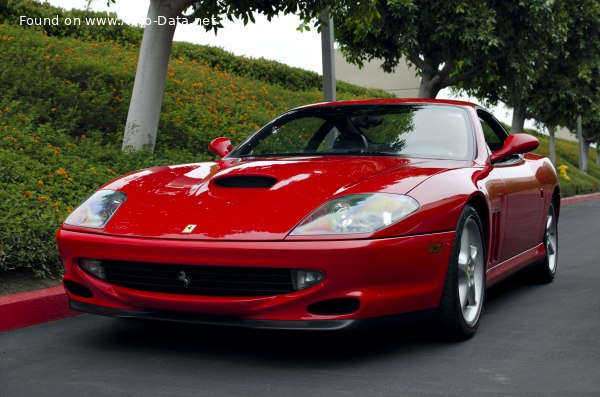

1996 Ferrari 550 Maranello - Photo 1

Ferrari 550 Maranello 5.5 V12 (485 Hp) – Full specifications
General information
Brand Ferrari
Model 550
Generation 550 Maranello
Modification (Engine) 5.5 V12 (485 Hp)
Start of production 1996 year
End of production 2002 year
Powertrain Architecture Internal Combustion engine
Body type Coupe
Seats 2
Doors 2
Performance specs
Fuel consumption (economy) – urban (NEDC) 38.2 l/100 km
6.2 US mpg
7.4 UK mpg
2.6 km/l
Fuel consumption (economy) – extra urban (NEDC) 16.4 l/100 km
14.3 US mpg
17.2 UK mpg
6.1 km/l
Fuel consumption (economy) – combined (NEDC) 24.4 l/100 km
9.6 US mpg
11.6 UK mpg
4.1 km/l
CO2 emissions (NEDC) 558 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 4.4 sec
Acceleration 0 – 62 mph 4.4 sec
Acceleration 0 – 60 mph 4.3 sec
Maximum speed 320 km/h
198.84 mph
Emission standard Euro 3
Weight-to-power ratio 3.5 kg/Hp, 287 Hp/tonne
Weight-to-torque ratio 3 kg/Nm, 336.7 Nm/tonne
Engine specs
Power 485 Hp @ 7000 rpm.
Power per litre 88.6 Hp/l
Torque 569 Nm @ 5000 rpm.
419.67 lb.-ft. @ 5000 rpm.
Maximum engine speed 7500 rpm.
Engine layout Front, Longitudinal
Engine Model/Code F133
Engine displacement 5474 cm3
334.04 cu. in.
Number of cylinders 12
Engine configuration V-engine
Cylinder Bore 88 mm
3.46 in.
Piston Stroke 75 mm
2.95 in.
Compression ratio 10.8:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 10 l
10.57 US qt | 8.8 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 19 l
20.08 US qt | 16.72 UK qt

Space, Volume and weights
Kerb Weight 1690 kg
3725.81 lbs.
Max. weight 1950 kg
4299.01 lbs.
Max load 260 kg
573.2 lbs.
Trunk (boot) space – minimum 185 l
6.53 cu. ft.
Fuel tank capacity 114 l
30.12 US gal | 25.08 UK gal
Dimensions
Length 4550 mm
179.13 in.
Width 1935 mm
76.18 in.
Height 1277 mm
50.28 in.
Wheelbase 2500 mm
98.43 in.
Front track 1632 mm
64.25 in.
Rear (Back) track 1586 mm
62.44 in.
Front overhang 1080 mm
42.52 in.
Rear overhang 970 mm
38.19 in.
Ride height (ground clearance) 135 mm
5.31 in.
Minimum turning circle (turning diameter) 11.6 m
38.06 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Double wishbone, Transverse stabilizer
Rear suspension Double wishbone, Transverse stabilizer
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size Front wheel tires: 255/40 ZR18
Rear wheel tires: 295/35 ZR18
Wheel rims size Front wheel rims: 8.5J x 18
Rear wheel rims: 10.5J x 18
