Specifications: Ferrari F430 Spider 4.3 i V8 32V (510 Hp) 2008, 2009

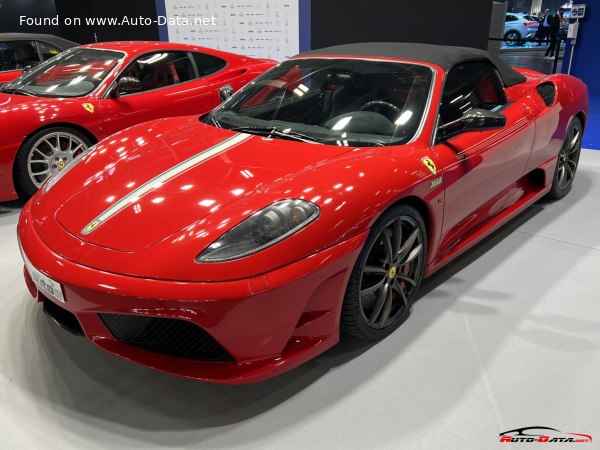

2005 Ferrari F430 Spider - Photo 1

Ferrari F430 Spider 4.3 i V8 32V (510 Hp) – Full specifications
General information
Brand Ferrari
Model F430
Generation F430 Spider
Modification (Engine) 4.3 i V8 32V (510 Hp)
Start of production 2008 year
End of production 2009 year
Powertrain Architecture Internal Combustion engine
Body type Cabriolet
Seats 2
Doors 2
Performance specs
Fuel consumption (economy) – combined 15.7 l/100 km
15 US mpg
18 UK mpg
6.4 km/l
CO2 emissions 360 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 3.7 sec
Acceleration 0 – 62 mph 3.7 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 3.5 sec
Maximum speed 315 km/h
195.73 mph
Weight-to-power ratio 2.8 kg/Hp, 354.2 Hp/tonne
Weight-to-torque ratio 3.1 kg/Nm, 326.4 Nm/tonne
Engine specs
Power 510 Hp @ 8500 rpm.
Power per litre 118.4 Hp/l
Torque 470 Nm @ 5250 rpm.
346.65 lb.-ft. @ 5250 rpm.
Engine layout Middle, Longitudinal
Engine displacement 4308 cm3
262.89 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 92 mm
3.62 in.
Piston Stroke 81.03 mm
3.19 in.
Compression ratio 11.9:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Engine oil capacity 10 l
10.57 US qt | 8.8 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 17.5 l
18.49 US qt | 15.4 UK qt

Space, Volume and weights
Kerb Weight 1440 kg
3174.66 lbs.
Trunk (boot) space – minimum 250 l
8.83 cu. ft.
Fuel tank capacity 95 l
25.1 US gal | 20.9 UK gal
Dimensions
Length 4511 mm
177.6 in.
Width 1923 mm
75.71 in.
Height 1217 mm
47.91 in.
Wheelbase 2601 mm
102.4 in.
Front track 1669 mm
65.71 in.
Rear (Back) track 1615 mm
63.58 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Double wishbone
Rear suspension Double wishbone
Front brakes Ventilated discs, 398×36 mm
Rear brakes Ventilated discs, 350×34 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size Front wheel tires: 235/35 ZR19
Rear wheel tires: 285/35 ZR19
