Specifications: Fiat 126 700 (26 Hp) 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996

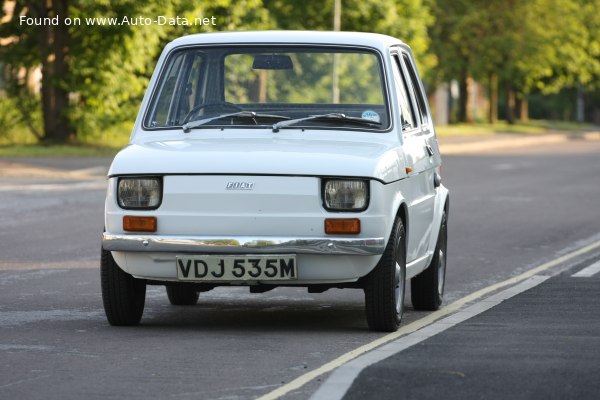

1972 Fiat 126 - Photo 1

Fiat 126 700 (26 Hp) – Full specifications
General information
Brand Fiat
Model 126
Generation 126
Modification (Engine) 700 (26 Hp)
Start of production 1987 year
End of production 1996 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 4
Doors 3
Performance specs
Fuel consumption (economy) – urban 5.8 l/100 km
40.6 US mpg
48.7 UK mpg
17.2 km/l
Fuel consumption (economy) – extra urban 4.4 l/100 km
53.5 US mpg
64.2 UK mpg
22.7 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 33 sec
Acceleration 0 – 62 mph 33 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 31.4 sec
Maximum speed 116 km/h
72.08 mph
Weight-to-power ratio 24.8 kg/Hp, 40.3 Hp/tonne
Weight-to-torque ratio 13.2 kg/Nm, 76 Nm/tonne
Engine specs
Power 26 Hp @ 4500 rpm.
Power per litre 36.9 Hp/l
Torque 49 Nm @ 2000 rpm.
36.14 lb.-ft. @ 2000 rpm.
Engine layout Rear, Transverse
Engine Model/Code 126 A2.048
Engine displacement 704 cm3
42.96 cu. in.
Number of cylinders 2
Engine configuration Inline
Cylinder Bore 80 mm
3.15 in.
Piston Stroke 70 mm
2.76 in.
Compression ratio 8.6:1
Number of valves per cylinder 2
Fuel injection system Carburettor
Engine aspiration Naturally aspirated engine
Engine oil capacity 2.5 l
2.64 US qt | 2.2 UK qt
Engine oil specification Log in to see.Log in to see.

Space, Volume and weights
Kerb Weight 645 kg
1421.98 lbs.
Max. weight 990 kg
2182.58 lbs.
Max load 345 kg
760.59 lbs.
Trunk (boot) space – minimum 110 l
3.88 cu. ft.
Trunk (boot) space – maximum 555 l
19.6 cu. ft.
Fuel tank capacity 21 l
5.55 US gal | 4.62 UK gal
Dimensions
Length 3105 mm
122.24 in.
Width 1375 mm
54.13 in.
Height 1345 mm
52.95 in.
Wheelbase 1840 mm
72.44 in.
Front track 1135 mm
44.69 in.
Rear (Back) track 1170 mm
46.06 in.
Minimum turning circle (turning diameter) 9.2 m
30.18 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 4 gears, manual transmission
Front suspension Independent type McPherson
Rear suspension Coil spring
Front brakes Drum
Rear brakes Drum
Steering type Worm-reduction unit
Tires size 135/70 R13
