Specifications: Fiat 127 900 L (45 Hp) 1978, 1979

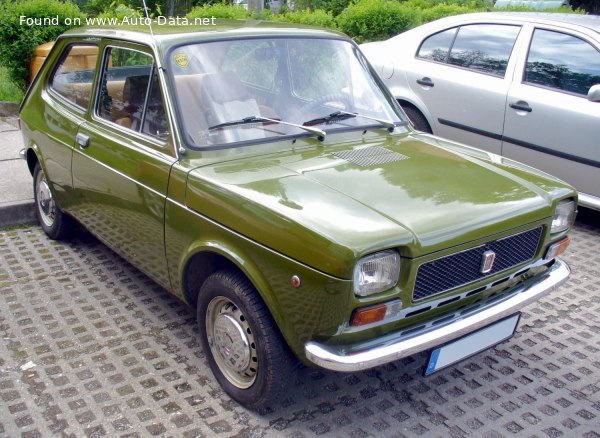

1971 Fiat 127 - Photo 1

Fiat 127 900 L (45 Hp) – Full specifications
General information
Brand Fiat
Model 127
Generation 127
Modification (Engine) 900 L (45 Hp)
Start of production April, 1978 year
End of production March, 1979 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 2
Performance specs
Fuel consumption (economy) – extra urban 5 l/100 km
47 US mpg
56.5 UK mpg
20 km/l
Fuel consumption (economy) – combined 6.5 l/100 km
36.2 US mpg
43.5 UK mpg
15.4 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 21 sec
Acceleration 0 – 62 mph 21 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 20 sec
Maximum speed 135 km/h
83.89 mph
Weight-to-power ratio 15.8 kg/Hp, 63.4 Hp/tonne
Weight-to-torque ratio 11.3 kg/Nm, 88.7 Nm/tonne
Engine specs
Power 45 Hp @ 5600 rpm.
Power per litre 49.8 Hp/l
Torque 63 Nm @ 6500 rpm.
46.47 lb.-ft. @ 6500 rpm.
Engine layout Front, Transverse
Engine Model/Code 100GL.000
Engine displacement 903 cm3
55.1 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 65 mm
2.56 in.
Piston Stroke 68 mm
2.68 in.
Compression ratio 9:1
Number of valves per cylinder 2
Fuel injection system Carburettor
Engine aspiration Naturally aspirated engine
Valvetrain OHV
Engine oil capacity 3.9 l
4.12 US qt | 3.43 UK qt
Coolant 5 l
5.28 US qt | 4.4 UK qt

Space, Volume and weights
Kerb Weight 710 kg
1565.28 lbs.
Max. weight 1110 kg
2447.13 lbs.
Max load 400 kg
881.85 lbs.
Trunk (boot) space – minimum 365 l
12.89 cu. ft.
Trunk (boot) space – maximum 1070 l
37.79 cu. ft.
Fuel tank capacity 30 l
7.93 US gal | 6.6 UK gal
Permitted trailer load with brakes (12%) 600 kg
1322.77 lbs.
Dimensions
Length 3625 mm
142.72 in.
Width 1527 mm
60.12 in.
Height 1358 mm
53.46 in.
Wheelbase 2225 mm
87.6 in.
Front track 1280 mm
50.39 in.
Rear (Back) track 1295 mm
50.98 in.
Ride height (ground clearance) 160 mm
6.3 in.
Minimum turning circle (turning diameter) 9.6 m
31.5 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 4 gears, manual transmission
Front suspension Independent type McPherson
Rear suspension Leaf spring
Front brakes Drum
Rear brakes Drum
Steering type Cone worm with recirculation balls
