Specifications: Fiat 500 (312, facelift 2015) 1.0 (70 Hp) Mild Hybrid 2020, 2021, 2022, 2023, 2024, 2025

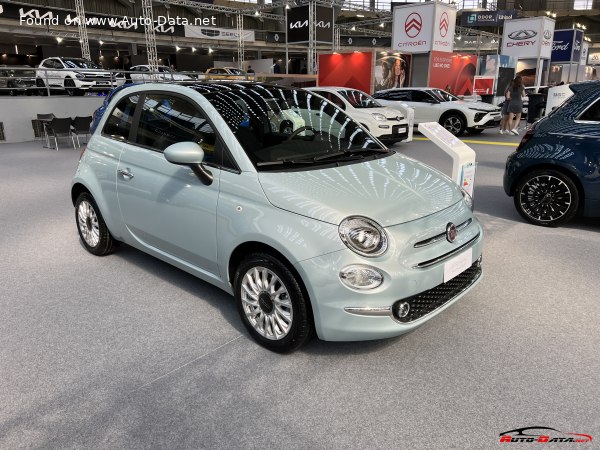

2016 Fiat 500 (312, facelift 2015) - Photo 1

Fiat 500 (312, facelift 2015) 1.0 (70 Hp) Mild Hybrid – Full specifications
General information
Brand Fiat
Model 500
Generation 500 (312, facelift 2015)
Modification (Engine) 1.0 (70 Hp) Mild Hybrid
Start of production January, 2020 year
Powertrain Architecture MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Body type Hatchback
Seats 4
Doors 3
Performance specs
Fuel consumption (economy) – urban (NEDC) 4.7 l/100 km
50 US mpg
60.1 UK mpg
21.3 km/l
Fuel consumption (economy) – extra urban (NEDC) 3.4 l/100 km
69.2 US mpg
83.1 UK mpg
29.4 km/l
Fuel consumption (economy) – combined (NEDC) 3.9 l/100 km
60.3 US mpg
72.4 UK mpg
25.6 km/l
CO2 emissions (NEDC) 88 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 13.8 sec
Acceleration 0 – 62 mph 13.8 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 13.1 sec
Maximum speed 167 km/h
103.77 mph
Emission standard Euro 6d
Weight-to-power ratio 13.4 kg/Hp, 74.5 Hp/tonne
Weight-to-torque ratio 10.2 kg/Nm, 97.9 Nm/tonne
Engine specs
Power 70 Hp @ 6000 rpm.
Power per litre 70.1 Hp/l
Torque 92 Nm @ 3500 rpm.
67.86 lb.-ft. @ 3500 rpm.
Engine layout Front, Transverse
Engine Model/Code 312.AYD1B
Engine displacement 999 cm3
60.96 cu. in.
Number of cylinders 3
Engine configuration Inline
Cylinder Bore 70 mm
2.76 in.
Piston Stroke 86.5 mm
3.41 in.
Compression ratio 12:1
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine oil capacity 2.5 l
2.64 US qt | 2.2 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 4.4 l
4.65 US qt | 3.87 UK qt
Engine systems Start & Stop System

Space, Volume and weights
Kerb Weight 940 kg
2072.35 lbs.
Max. weight 1345 kg
2965.22 lbs.
Max load 405 kg
892.87 lbs.
Fuel tank capacity 35 l
9.25 US gal | 7.7 UK gal
Dimensions
Length 3571 mm
140.59 in.
Width 1627 mm
64.06 in.
Height 1488 mm
58.58 in.
Wheelbase 2300 mm
90.55 in.
Front track 1413 mm
55.63 in.
Rear (Back) track 1407 mm
55.39 in.
Minimum turning circle (turning diameter) 9.3 m
30.51 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work only in mixed mode.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent type McPherson
Rear suspension Torsion
Front brakes Disc, 257 mm
Rear brakes Drum, 180 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 175/65 R14
Wheel rims size 14
