Specifications: Fiat 500L 1.3 MultiJetII (85 Hp) 2012, 2013, 2014

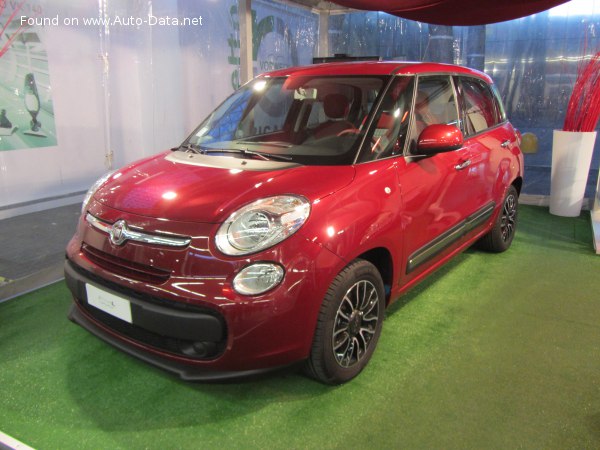

2012 Fiat 500L - Photo 1

Fiat 500L 1.3 MultiJetII (85 Hp) – Full specifications
General information
Brand Fiat
Model 500L
Generation 500L
Modification (Engine) 1.3 MultiJetII (85 Hp)
Start of production 2012 year
End of production 2014 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 5 l/100 km
47 US mpg
56.5 UK mpg
20 km/l
Fuel consumption (economy) – extra urban 3.7 l/100 km
63.6 US mpg
76.3 UK mpg
27 km/l
Fuel consumption (economy) – combined 4.2 l/100 km
56 US mpg
67.3 UK mpg
23.8 km/l
CO2 emissions 110 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 14.9 sec
Acceleration 0 – 62 mph 14.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 14.2 sec
Maximum speed 165 km/h
102.53 mph
Emission standard Euro 5
Weight-to-power ratio 15.2 kg/Hp, 65.6 Hp/tonne
Weight-to-torque ratio 6.5 kg/Nm, 154.4 Nm/tonne
Engine specs
Power 85 Hp @ 3500 rpm.
Power per litre 68.1 Hp/l
Torque 200 Nm @ 1500 rpm.
147.51 lb.-ft. @ 1500 rpm.
Engine layout Front, Transverse
Engine Model/Code 199B4000
Engine displacement 1248 cm3
76.16 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 69.6 mm
2.74 in.
Piston Stroke 82 mm
3.23 in.
Compression ratio 16.8:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 3.2 l
3.38 US qt | 2.82 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 5.9 l
6.23 US qt | 5.19 UK qt
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1295 kg
2854.99 lbs.
Trunk (boot) space – minimum 412 l
14.55 cu. ft.
Trunk (boot) space – maximum 1375 l
48.56 cu. ft.
Fuel tank capacity 50 l
13.21 US gal | 11 UK gal
Permitted trailer load with brakes (12%) 1000 kg
2204.62 lbs.
Permitted trailer load without brakes 400 kg
881.85 lbs.
Dimensions
Length 4147 mm
163.27 in.
Width 1784 mm
70.24 in.
Height 1665 mm
65.55 in.
Wheelbase 2612 mm
102.83 in.
Front track 1522 mm
59.92 in.
Rear (Back) track 1519 mm
59.8 in.
Minimum turning circle (turning diameter) 10.7 m
35.1 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent type McPherson
Rear suspension Semi-independent, coil spring
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 195/65 R15; 205/55 R16; 225/45 R17
Wheel rims size 6J x 15; 6.5J x 16; 7J x 17
