Specifications: Fiat 500X (facelift 2022) 1.3 MultiAir (177 Hp) AWD Automatic 2022, 2023, 2024, 2025

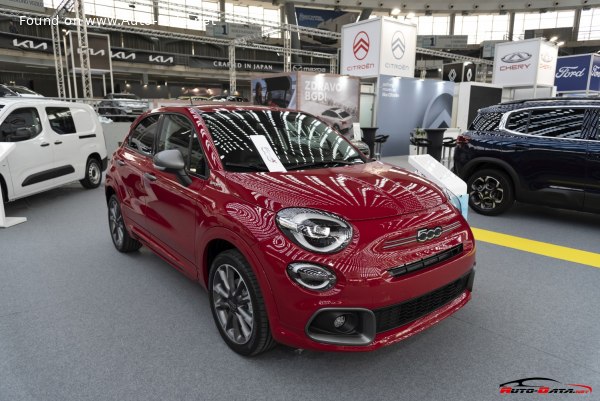

2022 Fiat 500X (facelift 2022) - Photo 1

Fiat 500X (facelift 2022) 1.3 MultiAir (177 Hp) AWD Automatic – Full specifications
General information
Brand Fiat
Model 500X
Generation 500X (facelift 2022)
Modification (Engine) 1.3 MultiAir (177 Hp) AWD Automatic
Start of production 2022 year
Powertrain Architecture Internal Combustion engine
Body type SUV, Crossover
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban (EPA) 9.8 l/100 km
24 US mpg
28.8 UK mpg
10.2 km/l
Fuel consumption (economy) – extra urban (EPA) 7.8 l/100 km
30.2 US mpg
36.2 UK mpg
12.8 km/l
Fuel consumption (economy) – combined (EPA) 9 l/100 km
26.1 US mpg
31.4 UK mpg
11.1 km/l
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 8.5 kg/Hp, 118.1 Hp/tonne
Weight-to-torque ratio 5.3 kg/Nm, 190.1 Nm/tonne
Engine specs
Power 177 Hp @ 5500 rpm.
Power per litre 132.9 Hp/l
Torque 285 Nm @ 2200 rpm.
210.21 lb.-ft. @ 2200 rpm.
Maximum engine speed 6500 rpm.
Engine layout Front, Transverse
Engine displacement 1332 cm3
81.28 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 70 mm
2.76 in.
Piston Stroke 86.5 mm
3.41 in.
Compression ratio 10.5:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain SOHC
Engine oil capacity 4.3 l
4.54 US qt | 3.78 UK qt
Engine systems Start & Stop System

Space, Volume and weights
Kerb Weight 1499 kg
3304.73 lbs.
Max. weight 1980 kg
4365.15 lbs.
Max load 481 kg
1060.42 lbs.
Trunk (boot) space – minimum 400 l
14.13 cu. ft.
Trunk (boot) space – maximum 1127 l
39.8 cu. ft.
Fuel tank capacity 48 l
12.68 US gal | 10.56 UK gal
Permitted trailer load with brakes (12%) 907 kg
1999.59 lbs.
Dimensions
Length 4248 mm
167.24 in.
Width 1796 mm
70.71 in.
Width with mirrors folded 1859 mm
73.19 in.
Width including mirrors 2025 mm
79.72 in.
Height 1617 mm
63.66 in.
Wheelbase 2570 mm
101.18 in.
Front track 1543 mm
60.75 in.
Rear (Back) track 1543 mm
60.75 in.
Ride height (ground clearance) 202 mm
7.95 in.
Drag coefficient (Cd) 0.35
Minimum turning circle (turning diameter) 11.07 m
36.32 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels permanently, and the rear wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 9 gears, automatic transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Transverse stabilizer, Coil spring
Front brakes Ventilated discs, 305×28 mm
Rear brakes Disc, 278×12 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 215/60 R17; 225/55 R18; 225/45 R19
Wheel rims size 6.5J x 17; 7J x 18; 7J x 19
