Specifications: Fiat Bravo II (198) 1.6 Multijet (90 Hp) 2009, 2010, 2011, 2012, 2013, 2014

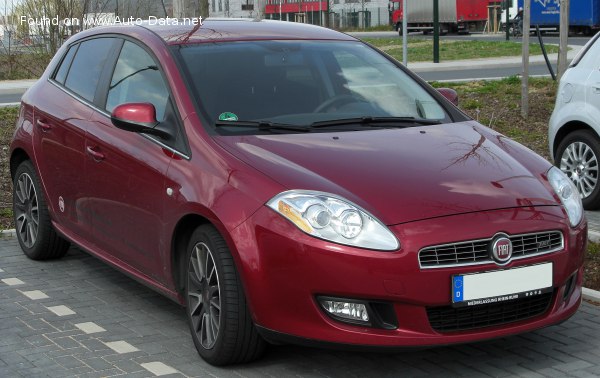

2007 Fiat Bravo II (198) - Photo 1

Fiat Bravo II (198) 1.6 Multijet (90 Hp) – Full specifications
General information
Brand Fiat
Model Bravo
Generation Bravo II (198)
Modification (Engine) 1.6 Multijet (90 Hp)
Start of production 2009 year
End of production 2014 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 5.6 l/100 km
42 US mpg
50.4 UK mpg
17.9 km/l
Fuel consumption (economy) – extra urban 3.7 l/100 km
63.6 US mpg
76.3 UK mpg
27 km/l
Fuel consumption (economy) – combined 4.4 l/100 km
53.5 US mpg
64.2 UK mpg
22.7 km/l
CO2 emissions 115 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 12.8 sec
Acceleration 0 – 62 mph 12.8 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 12.2 sec
Maximum speed 173 km/h
107.5 mph
Emission standard Euro 5
Weight-to-power ratio 14.7 kg/Hp, 68.2 Hp/tonne
Weight-to-torque ratio 4.6 kg/Nm, 219.7 Nm/tonne
Engine specs
Power 90 Hp @ 4000 rpm.
Power per litre 56.3 Hp/l
Torque 290 Nm @ 1500 rpm.
213.89 lb.-ft. @ 1500 rpm.
Engine layout Front, Transverse
Engine Model/Code 198A6000
Engine displacement 1598 cm3
97.52 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 79.5 mm
3.13 in.
Piston Stroke 80.5 mm
3.17 in.
Compression ratio 16.5:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 4.6 l
4.86 US qt | 4.05 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7.1 l
7.5 US qt | 6.25 UK qt
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1320 kg
2910.1 lbs.
Max. weight 1830 kg
4034.46 lbs.
Max load 510 kg
1124.36 lbs.
Trunk (boot) space – minimum 400 l
14.13 cu. ft.
Trunk (boot) space – maximum 1175 l
41.49 cu. ft.
Fuel tank capacity 57 l
15.06 US gal | 12.54 UK gal
Permitted trailer load with brakes (12%) 1300 kg
2866.01 lbs.
Permitted trailer load without brakes 500 kg
1102.31 lbs.
Dimensions
Length 4336 mm
170.71 in.
Width 1792 mm
70.55 in.
Height 1498 mm
58.98 in.
Wheelbase 2600 mm
102.36 in.
Front track 1538 mm
60.55 in.
Rear (Back) track 1532 mm
60.31 in.
Minimum turning circle (turning diameter) 10.4 m
34.12 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent type McPherson
Rear suspension Coil spring
Front brakes Disc
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 205/55 R16
Wheel rims size 16
