Specifications: Fiat Croma (154) 2500 TD (115 Hp) 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996

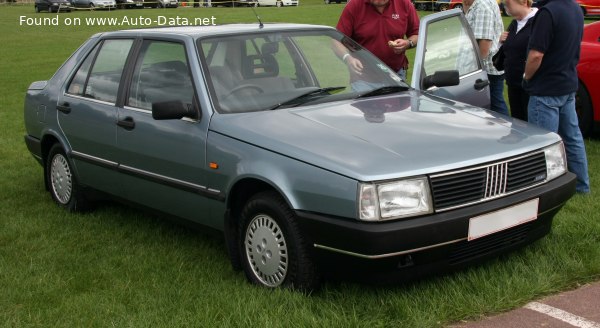

1986 Fiat Croma (154) - Photo 1

Fiat Croma (154) 2500 TD (115 Hp) – Full specifications
General information
Brand Fiat
Model Croma
Generation Croma (154)
Modification (Engine) 2500 TD (115 Hp)
Start of production 1989 year
End of production 1996 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – combined 7.2 l/100 km
32.7 US mpg
39.2 UK mpg
13.9 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 11.5 sec
Acceleration 0 – 62 mph 11.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 10.9 sec
Maximum speed 192 km/h
119.3 mph
Weight-to-power ratio 11.7 kg/Hp, 85.3 Hp/tonne
Weight-to-torque ratio 5.5 kg/Nm, 181.8 Nm/tonne
Engine specs
Power 115 Hp @ 4100 rpm.
Power per litre 46 Hp/l
Torque 245 Nm @ 2400 rpm.
180.7 lb.-ft. @ 2400 rpm.
Engine layout Front, Transverse
Engine Model/Code 8144.97.2400
Engine displacement 2500 cm3
152.56 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 93 mm
3.66 in.
Piston Stroke 92 mm
3.62 in.
Compression ratio 21:1
Number of valves per cylinder 2
Fuel injection system Precombustion chamber injection
Engine aspiration Turbocharger
Valvetrain OHC
Engine oil capacity 6.4 l
6.76 US qt | 5.63 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 9.5 l
10.04 US qt | 8.36 UK qt

Space, Volume and weights
Kerb Weight 1348 kg
2971.83 lbs.
Max. weight 1870 kg
4122.64 lbs.
Max load 522 kg
1150.81 lbs.
Trunk (boot) space – minimum 500 l
17.66 cu. ft.
Trunk (boot) space – maximum 900 l
31.78 cu. ft.
Fuel tank capacity 78 l
20.61 US gal | 17.16 UK gal
Dimensions
Length 4520 mm
177.95 in.
Width 1760 mm
69.29 in.
Height 1435 mm
56.5 in.
Wheelbase 2660 mm
104.72 in.
Front track 1496 mm
58.9 in.
Rear (Back) track 1488 mm
58.58 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Wishbone
Rear suspension Spring-loaded rack
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 205/55 R15
